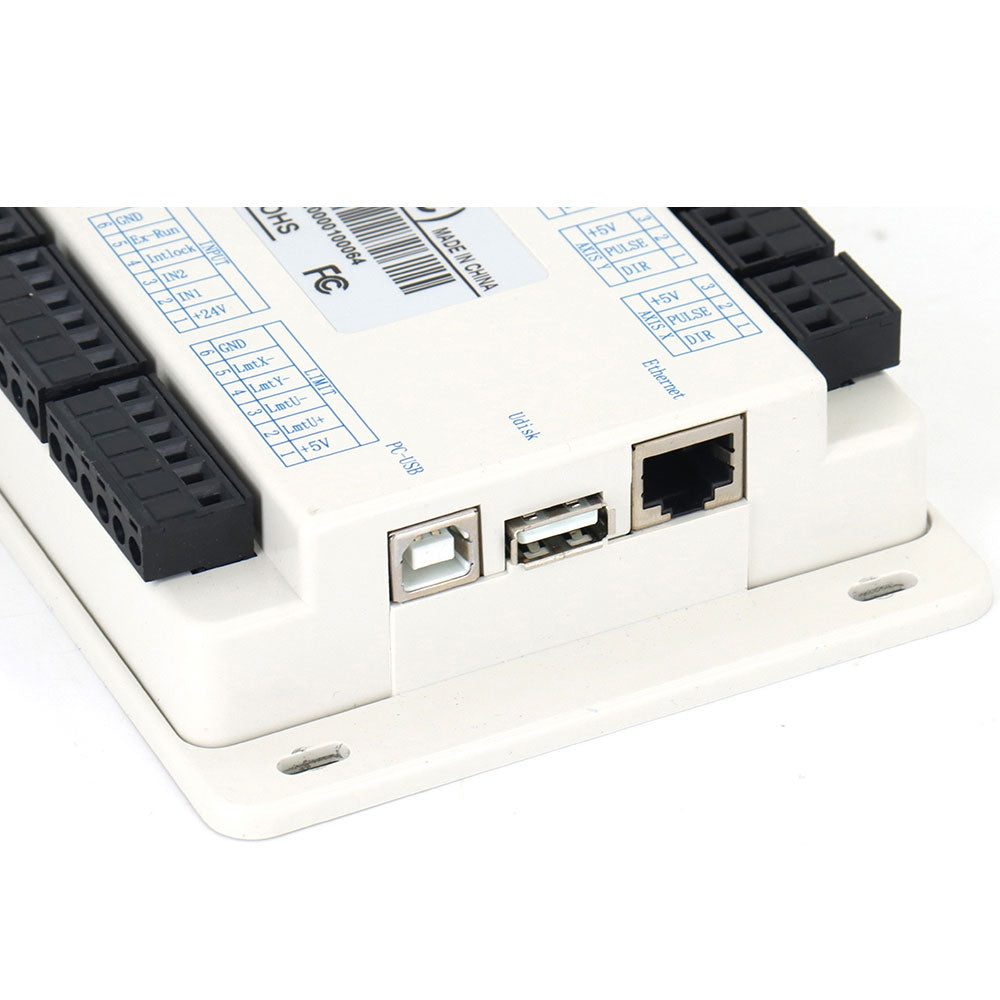

WaveTopSign KT332N Coo2 Laser Controller
Features:
1: The software is the same as Ruida, and the panel interface is the same
2: Support wireless handle and wireless WIFI expansion
3: The panel can auto focus, continuous jog, fast and slow speed, auxiliary blowing
4: One-key setting of the third axis, (focus, selection, feeding) can be directly checked in the software
5: The safety performance is good, with the panel hanging lock, the key is to prevent misoperation, foreign customers pay great attention to the safety performance
6: Offline file data verification, the panel can check whether the downloaded file is damaged
7: With clock chip, you can set the time according to the time zone
8: U disk can be used for data backup and recovery
9: The panel can be set to feed, array
10: Support 10 languages: Simplified Chinese, Traditional Chinese, English, German, French, Portuguese, Spanish, Russian, Vietnamese
11: Support RDworks v8, Laser burn
Parameters:
Motor Control: pulse+dir and +/-pulse
Pulse Frequency: 400KHz
PWM Resolution: 0.1%
General Output: OC output. Drive ability:200mA
Control Accuracy: +/-0.5 pulse
Maximum PWM Frequency: 200KHz
Analog Output: 0~5V, Voltage ripple <10mV
General Input Compatible with: 5V and 24V
Function:
1. Manual control: XYU manual movement control on panel
2. Auto-focus control: Controlled by the button <focus>on the panel
3. step/continuous: Step moving mode or continuous moving mode. Switched by key on the panel
4. Auxiliary air control: Controlled by the button<auxi.air> on the panel
5. Fast/slow: < fast/slow > + manual key can switch between fast speed and low speed. manual key is for slow moving
6. Version display: The version of controller and HMI are showing on the screen
7. Wireless control: Rs232 port, support remote controller
8. U axis configuration: U axis can be configured to be table rising control, feeding control or rotary cutting and engraving control
