Features:
1. System standard configuration x, y, z 3axis motion control method
2. Multi-I / O point control mode, standard equipped with I / O signal nodes each have 16 inputs, 8 output signals.
3. Support standard G code, PLT format instructions; support mainstream CAM software at home and abroad, such as: Type3, Artcam, Ug, Pro / E, Mastercam, Cimatron, Wenstel and other software.
4. Have power-down protection. Processing interruptive instant system automatically saves current processing information (file name, current processing line number, processing speed, spindle gear position), after power-on complete the back bed origin action, the system automatically prompts the user to restore the power-on processing, will process Operation is more user-friendly.
5. Support breakpoint memory, file selection line processing. 8 different breakpoint processing information can be saved.
6. Multi-coordinate system memory function. 9 working coordinate systems, users can switch between 9 coordinate systems, each coordinate system, can save a processing origin information.
7. Support for adjusting the spindle running frequency (or spindle speed). It can be set to 1 to 88 gear positions as needed, and the gear is adjusted by pressing the button, and does not need to be suspended.
8. Support for adjustment of processing during operation. The user can adjust the machining speed and air running speed by pressing the machining speed magnification, and the speed magnification value is added to 0.1-1 each time an addition or decrement 0.1.
9. Simple manual mode of operation. The system provides continuous, stepped (jog) in manual mode, and the manual operation becomes more concise.
10. You can identify the M code, F code, and other expansion instructions, and can open special code according to user needs.
11. Built-in 512 m memory, bring the USB communication port, efficient file transmission efficiency, can directly read the U disk and the card reader file, plug and play

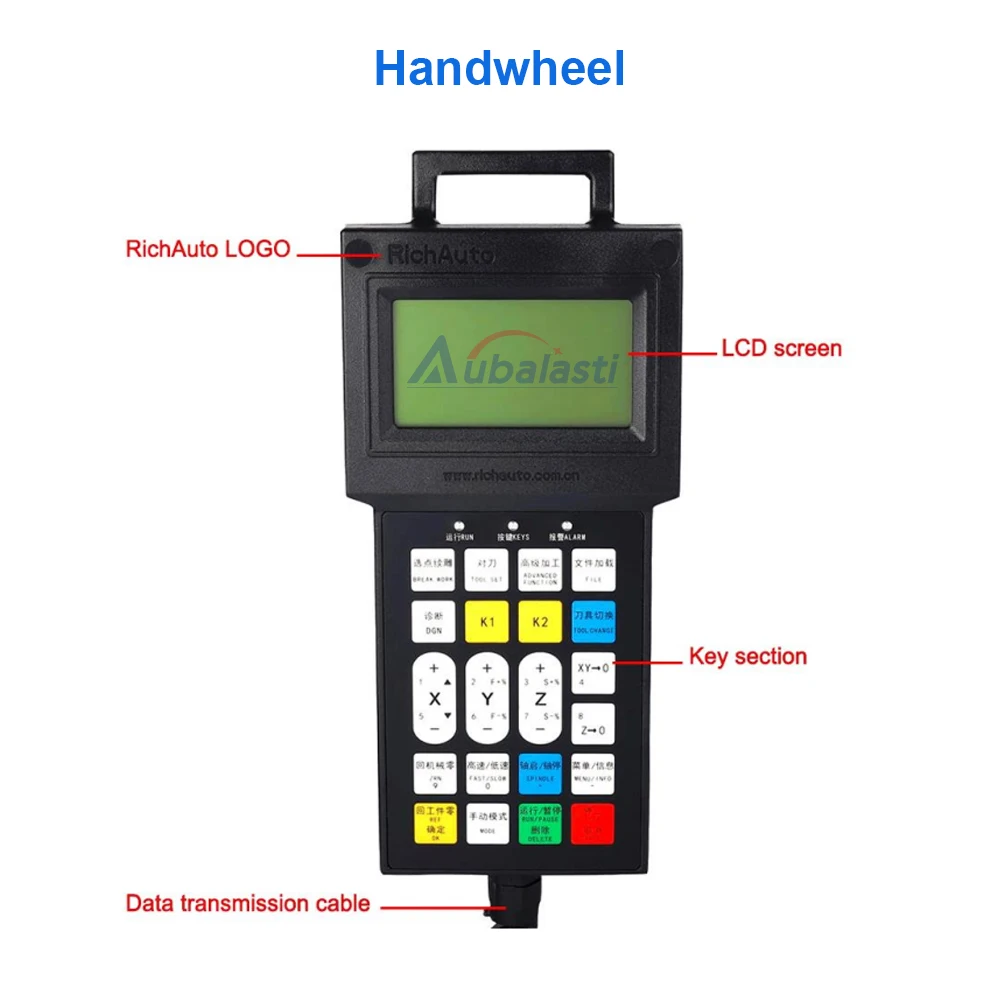

12. Unique handheld profile structure can be held. The self-contained liquid crystal display and 24-key operation keyboard, the operation is intuitive and flexible, no longer relying on the computer, fully realize the full off operation;
13. Self-testing, system comes with I / O port signal detection, easy remote maintenance.
14. Multi-language display. Support Simplified Chinese, Traditional Chinese, English, Russian, French, etc., and can be customized according to user needs.
15. The system supports automatic dynamic upgrade for remote operations to achieve remote maintenance.
16. Support FTP network transfer file function, which can quickly transfer files to the system through the network cable.
