Main Application:

Metal engraving and milling, low speed and high torque. can engrave on gold,silver,copper, aluminium,steel,Pb etc soft metal surface working.

Product Features:

1. 5.5KW 380V (11A) / 220v (19A) ER25 Water Cooled Spindle 4bearings

2. 5.5kw 220V or 380V VFD Inverter

3. Quantity: 8Pcs (ER25)

(If you want to change to another caliber, please contact us)

4. 4Pcs Plate

Features:

1. P4 angular contact bearings ,2×7002C P4 DT & 2×7002C P4 DT,increase spindle life. (New type,4 bearings)

2. Longer length make the torque bigger,more powerful.

3. Carefull assembly make the spindle more precisional.

4. Precision 0.01mm.Coaxial degree less than 0.0025mm

5. We have certificates and high-quality products can stand the test! ! !

Power: 5.5kw

Input Voltage（Phase）: 220v（1 Phase）/380v（3 Phase）

Output Voltage（Phase）: 220v（3 Phase）/380v（3 Phase）

Input Frequency: 50/60Hz

Input Current: 220v(15A) 380v(8A)

Output Current: 220v(22A) 380v(12A)

Output Frequency: 400Hz

Control Method: V/F control; Open-loop flux vector control


Features:

1. Control Mode is SPWM,it is very easy to use and convenient

2. Protection functions are very strong,

3. Fin over-heat protection,

4. Overload protection,

5. Fuse protection,

6. Restart after instant stop,stall protection.

7. Powful function

Features:

1. Adopt full sandblasting appearance treatment

2. Slot design, easy to lock the spindle

3. The cast aluminum has higher precision and is more durable

4. Scientific casting, stronger earthquake resistance

Parameters:

Diameter: 125mm

Material: Cast Aluminium

1. Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

2. Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth.

3. Cast aluminium fixture is much heavier than aluminium profile fixture. Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.

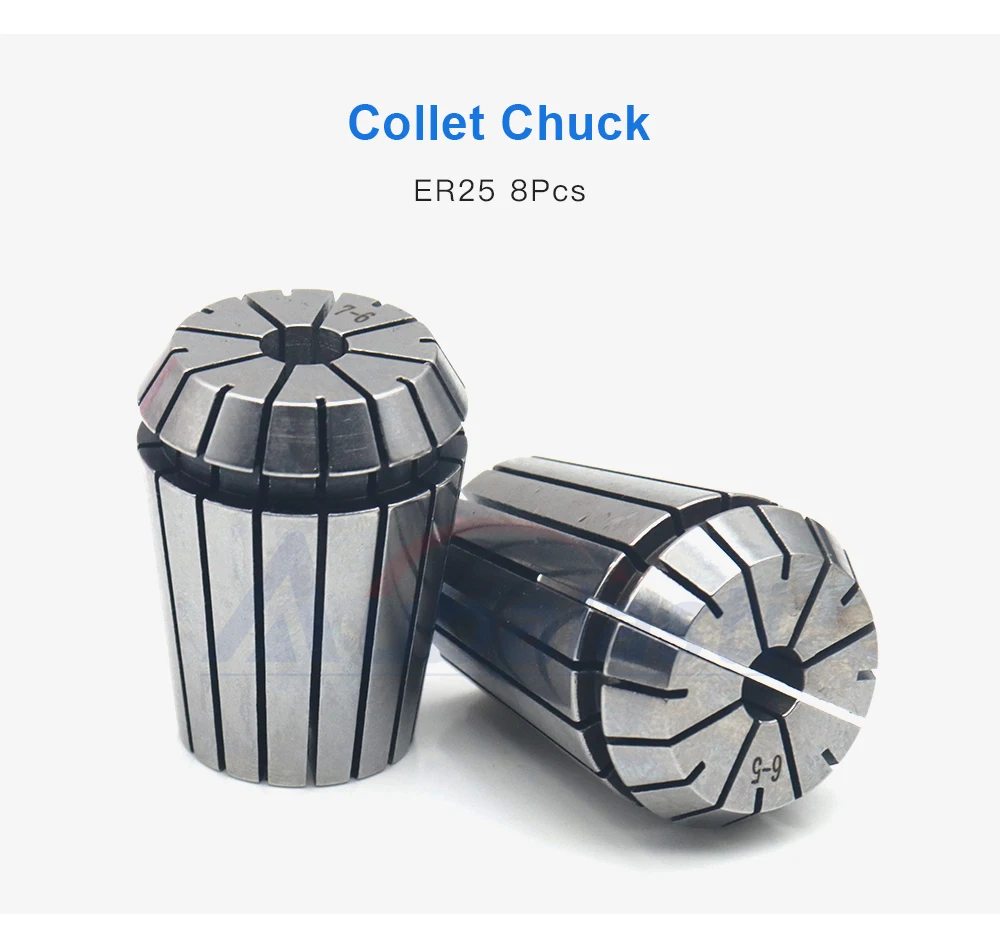

Features:

Type: ER25 High accuracy collet

Material: Steel

Quantity:8Pcs(ER25)

Precision: ≤ 0.008mm

Hardened & Precision ground

Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.

Notice: (If you want to change to another caliber, please contact us)
