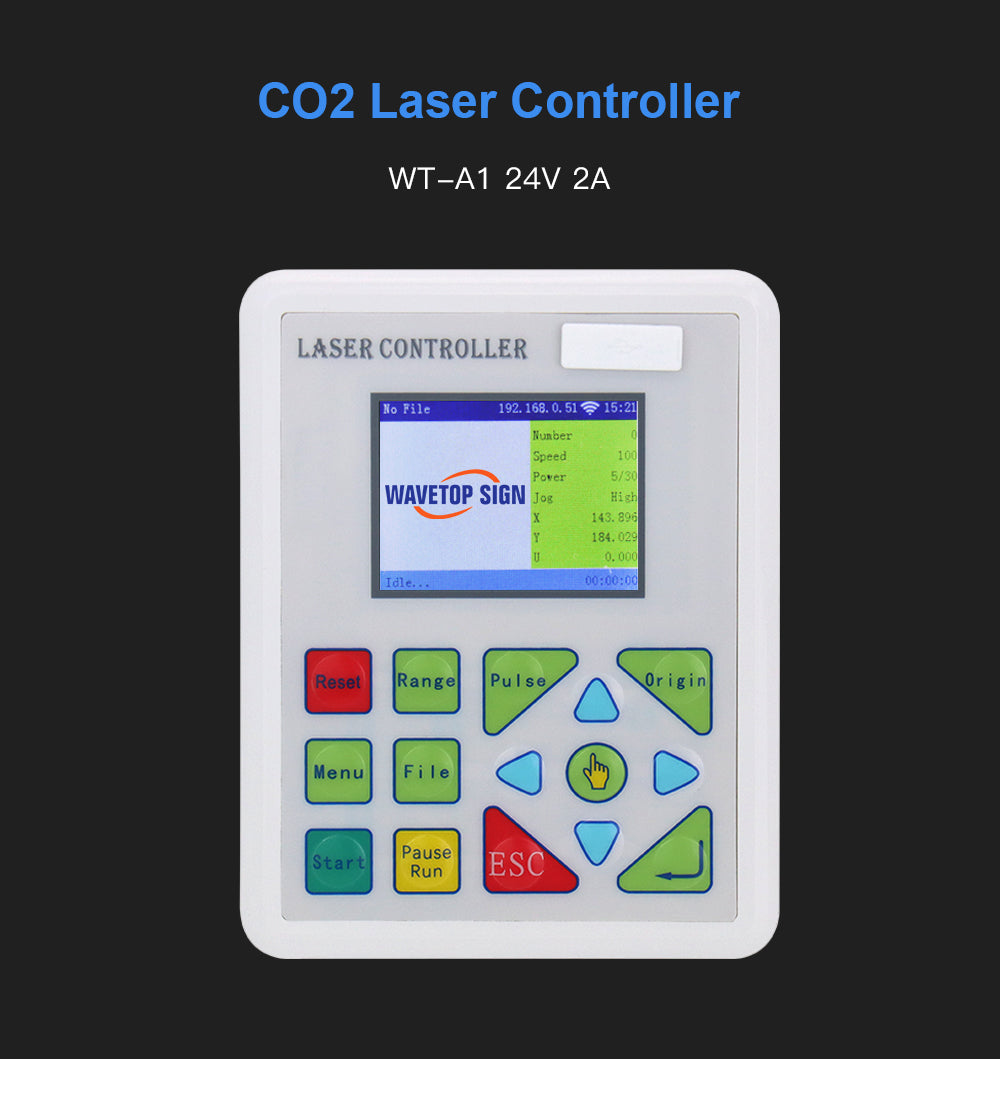

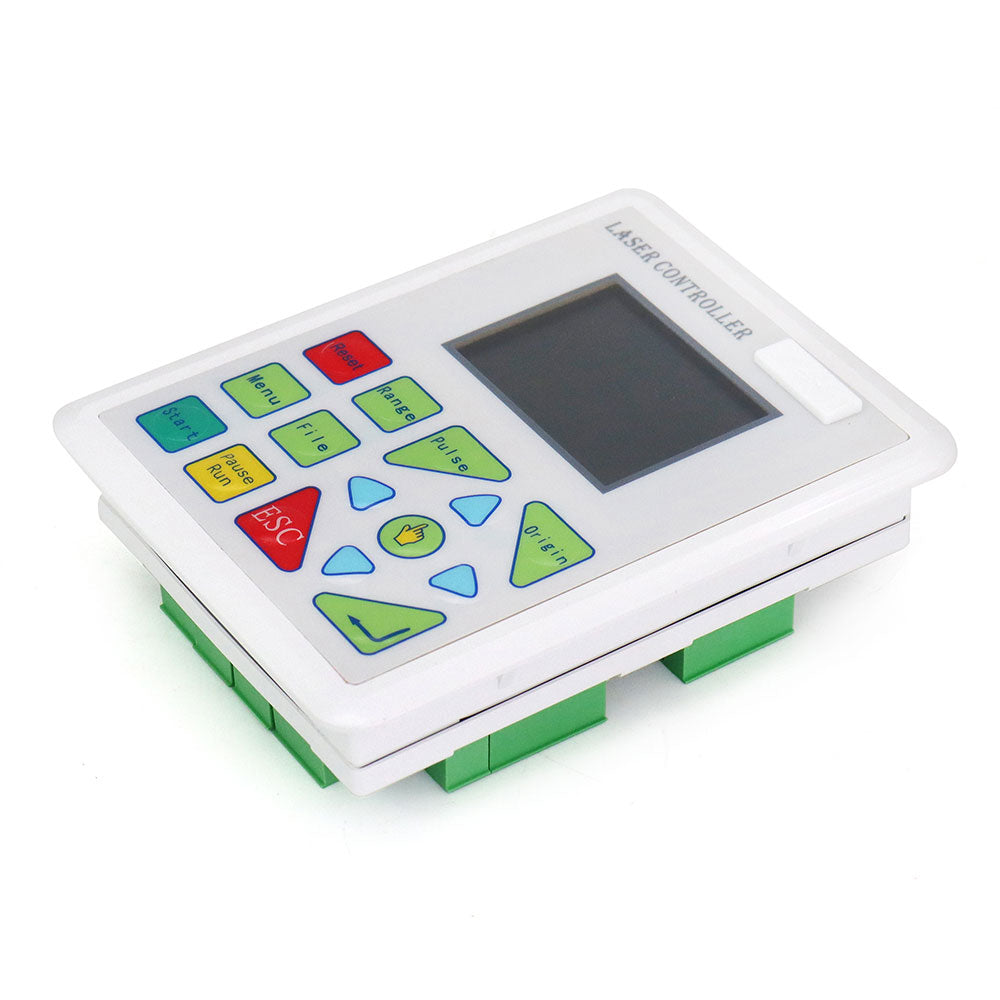

WaveTopSign TL-A1 Co2 Laser Controller
Features:

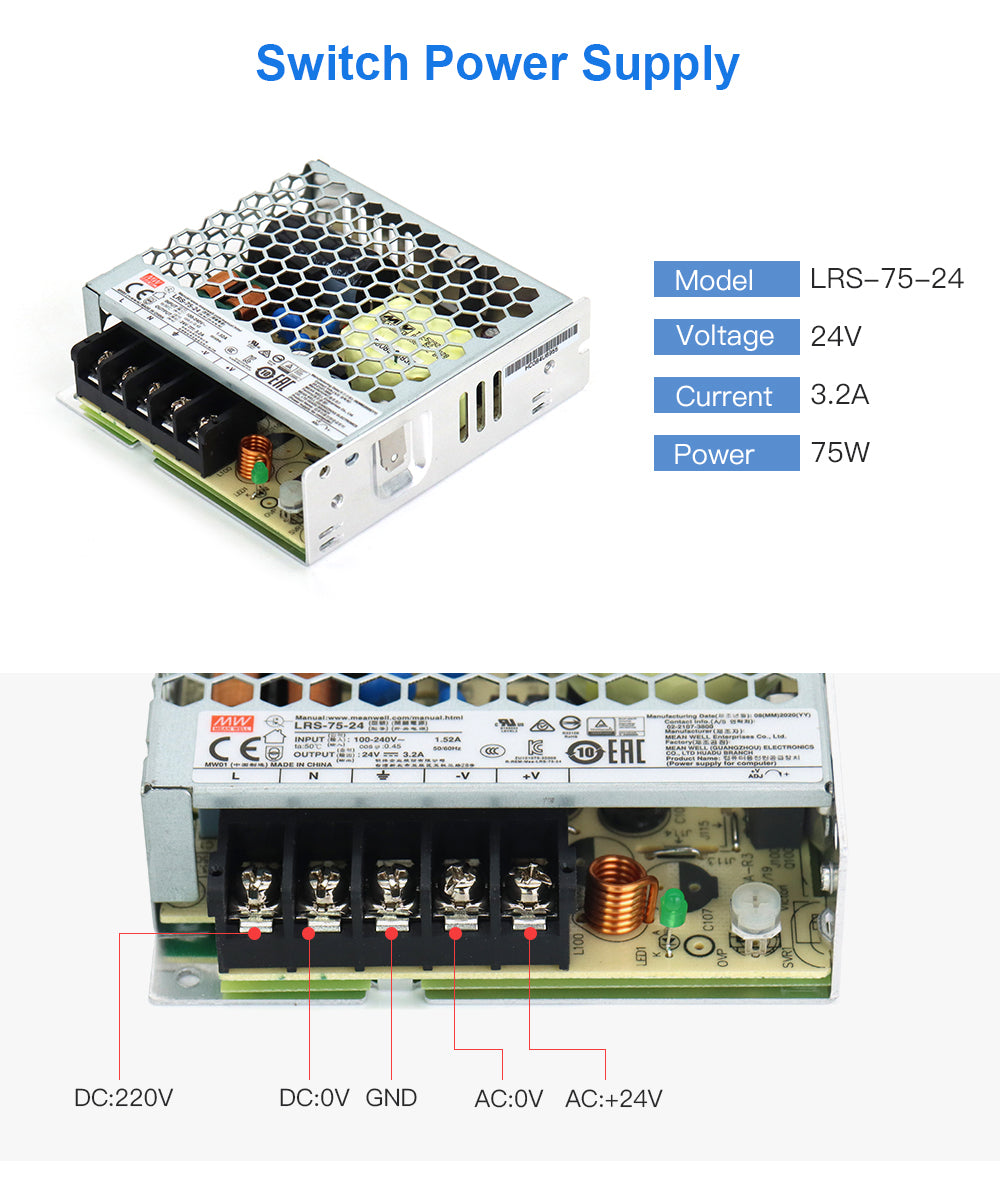

1. Power supply of DC24V;

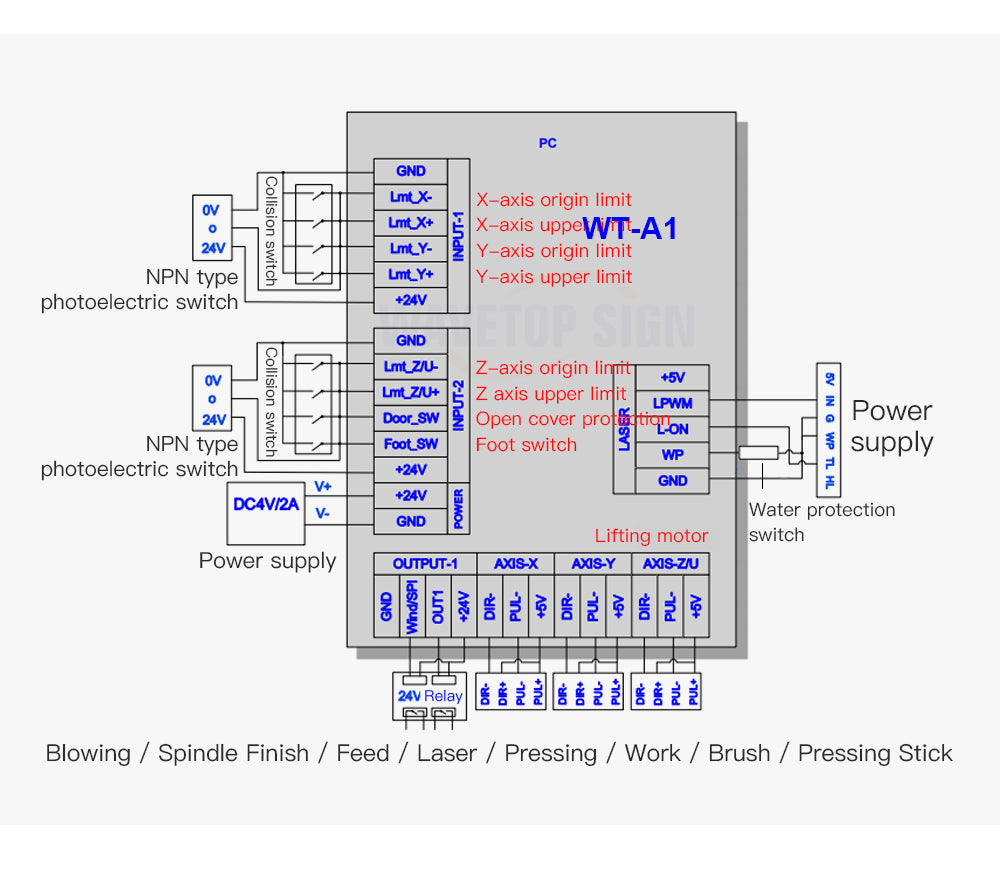

2. Use High-Performance 32-Bit CPU with ARM Floating-Point Unit(FPU), 128M Flash, 32M RAM, 6 general inputs, 12 general outputs, TTL electrical level;

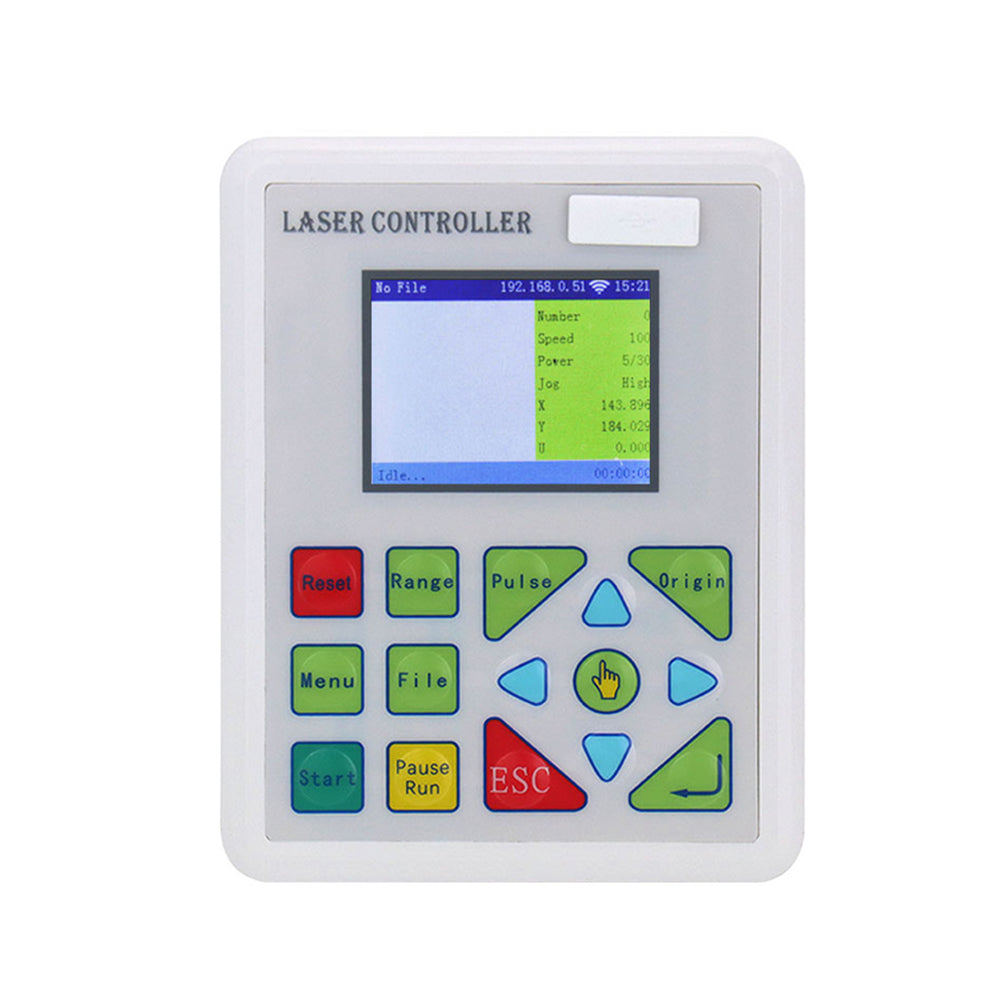

3. Equipped with 2.4‘‘LDC with color temperature of 65K;

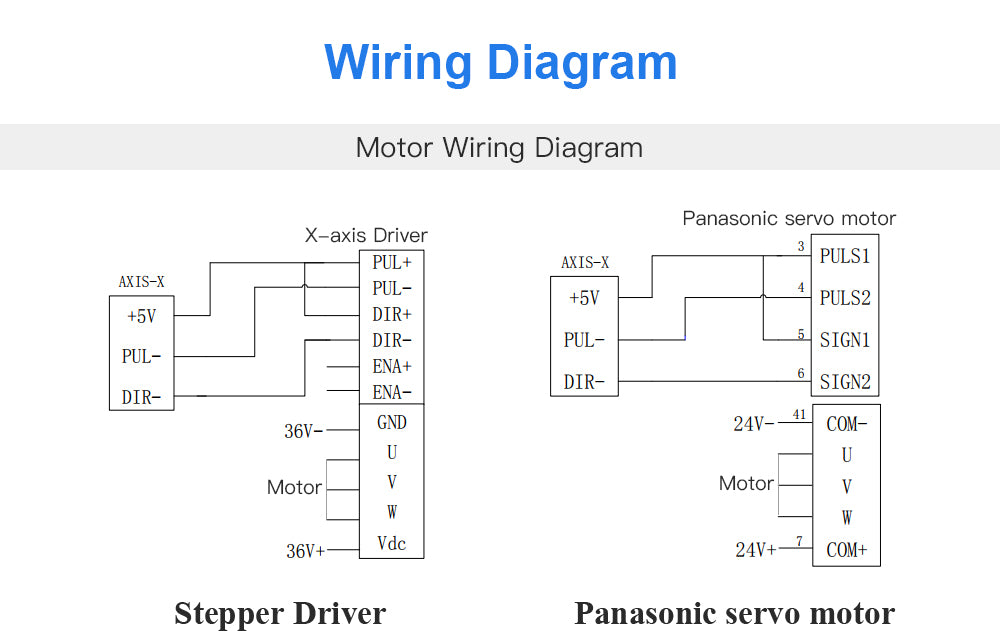

4. Support 3 axes motor control (X,Y axis used for horizontal motion, Z axis used for rotary cutter lift, U axis for feeding or platform lift, where the Z/U axis is multiplexed with one port. Motor pulse frequency can be as high as 166KHz;)
5. Adopt 7-segment S-shape acceleration and deceleration and adaptive speed planning algorithm, and support speed parameter setting and small circle speed limit with one button; Different cutting parameters available for different graphics; support backlash compensation;

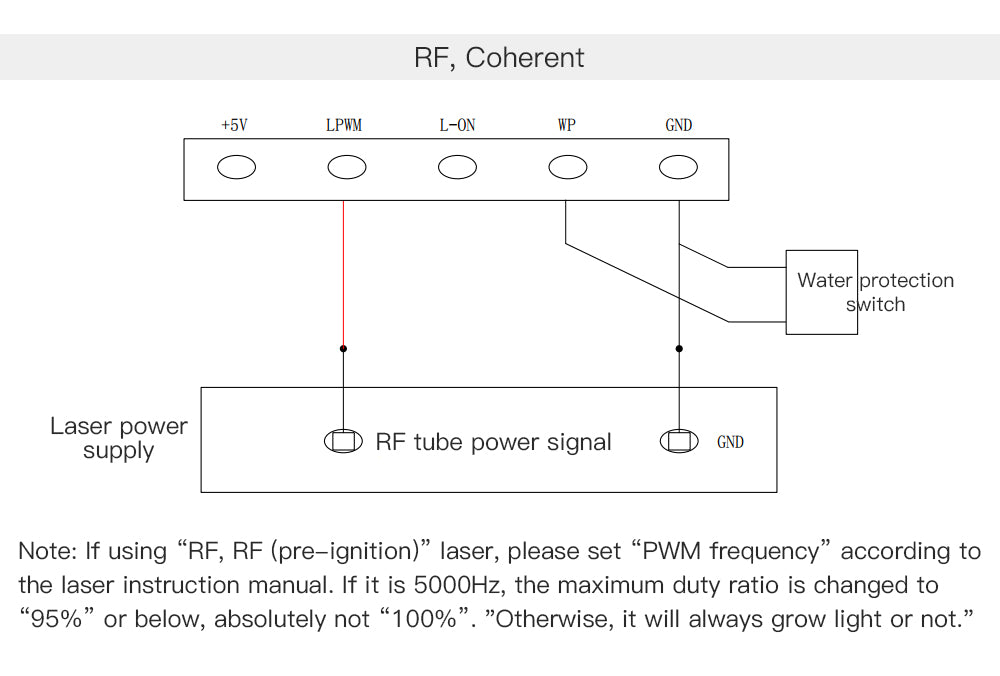

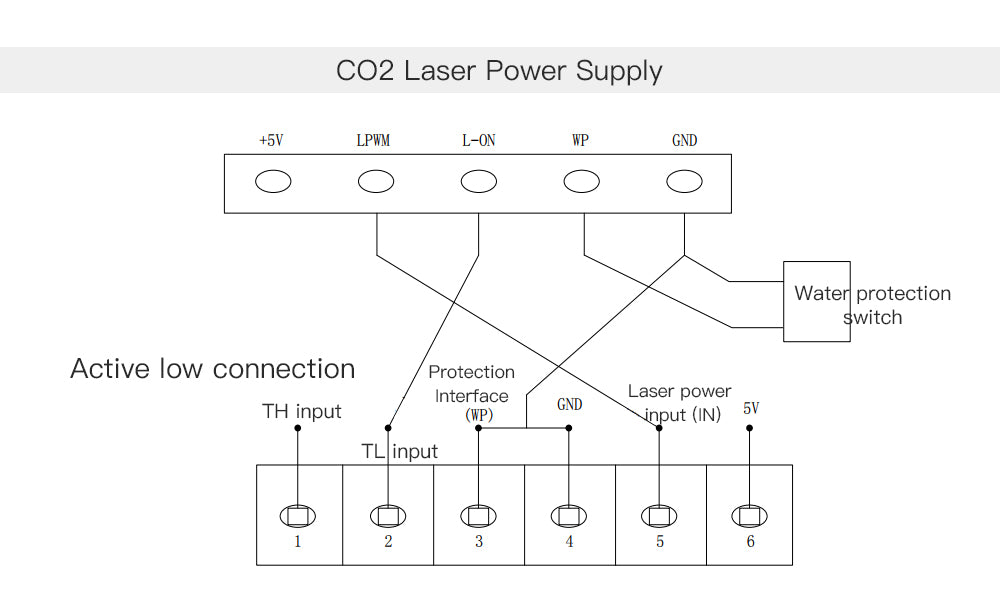

6. Support 1 lasers’ control, adjustable output voltage of laser control: 0~5V,adjustable PWM output: 0~100k, adjustable duty cycle: 0~100%；
7. Support USB.2 interface, support USB communication to computer , support reading and writing of U disk;
8. Support real-time Clock,machine clock;
9. Support rotary cutting, marked-positioning cutting rotating cutting height compensation, pressure feeding roller control;
10. Support track preview, continuous engraving after power-off, real-time correction of power light intensity and speed during work, rotary engraving, switchingof 2 platforms, split feeding, pressure feeding, automatic blowing, auto focus, foot switch, safety protection, upgrade, processing statistics information and other functions;

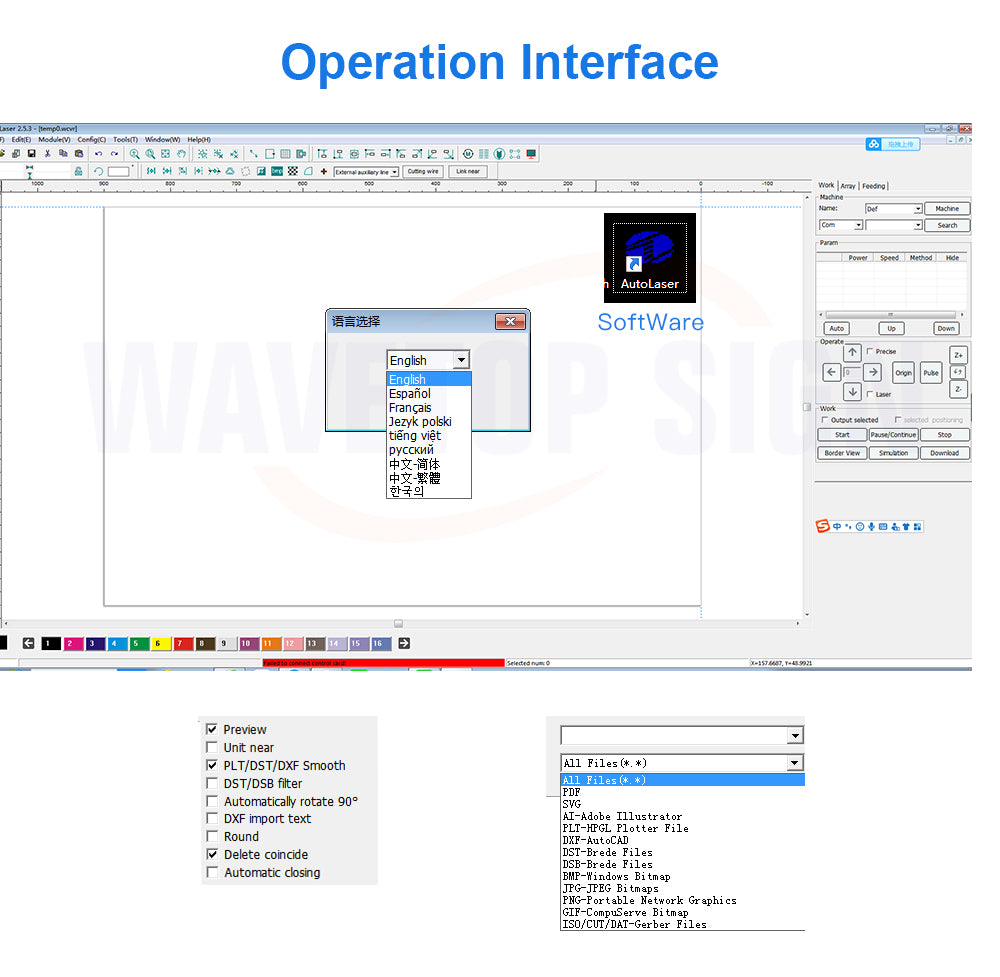

11. Support Chinese simplified, English, Chinese traditional, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese and other multi-language;
