WaveTopSign Non-Metal Height Controller Ruida Live Focus System

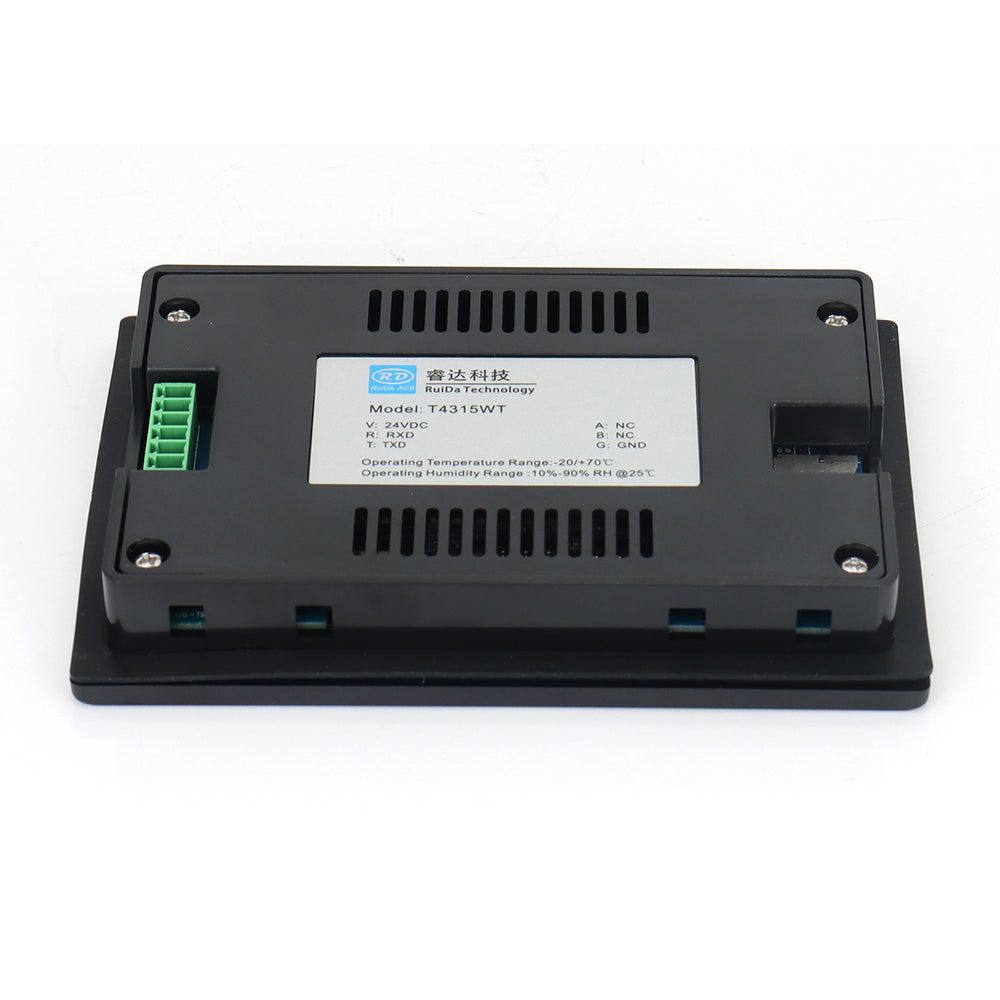

The LFS-ANM-T43-V2 automatic height adjustment control system is a height adjustment system specially developed by Ruida Technology for non-metal cutting. Equipped with a 4.3-inch industrial TFT true color touch screen, optimized operation interface, display real-time status and data. Optimize the pulse control method, improve the movement speed and response speed of the height controller, and realize accurate automatic height control.
Technical Parameters:
1. The detection accuracy can reach 0.01mm;
2. The maximum speed can reach 300mm/s, and the maximum acceleration can reach 8000mm/s^2
3. The dynamic detection range is ±35mm;
4. The pulse output frequency of the motor can reach 1MHz;
5. Analog voltage detection input 0-10v;
Function Description:
1. Realize the high-speed movement speed and response speed of servo motor or stepper motor;
2. Support multiple protection functions such as limit protection, emergency stop, cover opening protection, etc.;
3. Online modification of focus position, real-time monitoring of position changes, sensor monitoring range is ±35mm (optional);
4. Real-time motion status display of the cutting head and multiple alarm information prompts;
5. It supports the setting of different lifting heights and speeds, which is convenient for the use of different cutting methods;
