WaveTopSign 4.5kw 5.5kw 6kw CNC Water Cooled Spindle Motor Kits
Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)

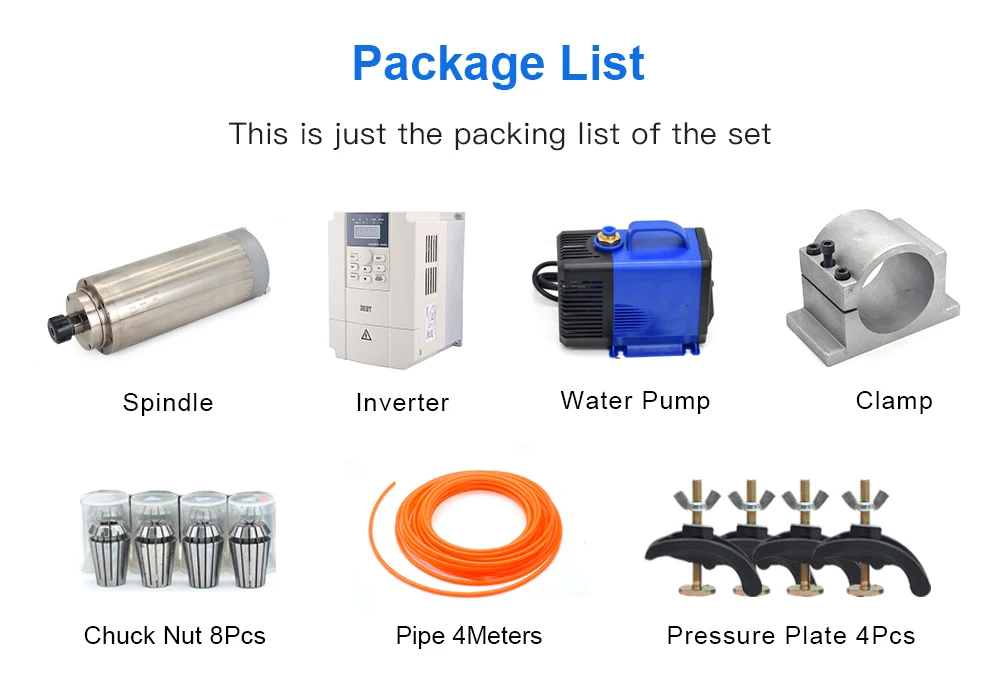

Product Features:

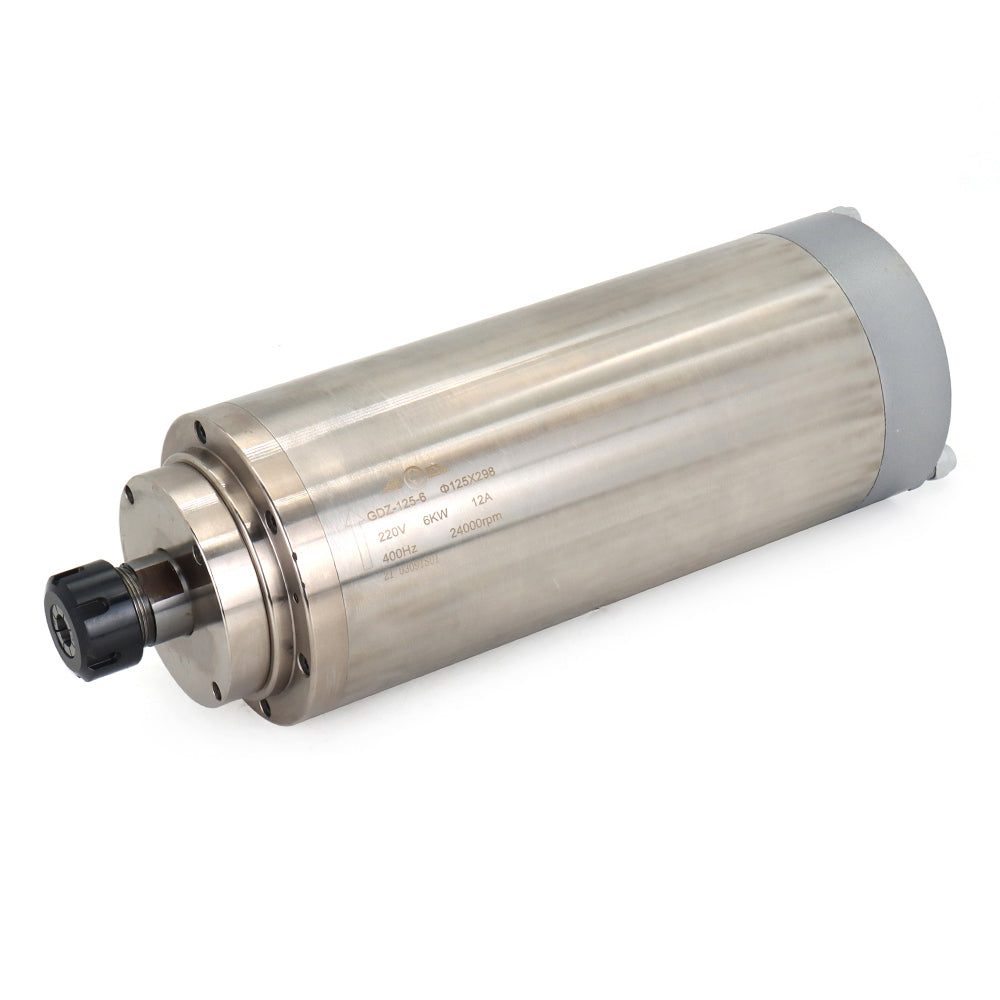

1. Hi-Q 6KW 220V 12A / 380V 10A ER25 Water Cooled Spindle 4bearings
2. 7.5kw 220V or 380V VFD Inverter
3. 125mm Mount Bracket
4. 80w Water Pump
5. 4m Tube 6x8mm
6. 8Pcs ER25 Chuck
7. 4Pcs Plate
Features:
1. P4 angular contact bearings , 2×7002C P4 DT & 2×7002C P4 DT,increase spindle life. (New type,4 bearings)
2. Longer length make the torque bigger,more powerful.
3. Carefull assembly make the spindle more precisional.
4. Precision 0.01mm.Coaxial degree less than 0.0025mm
5. We have certificates and high-quality products can stand the test! ! !
Product Parameters:

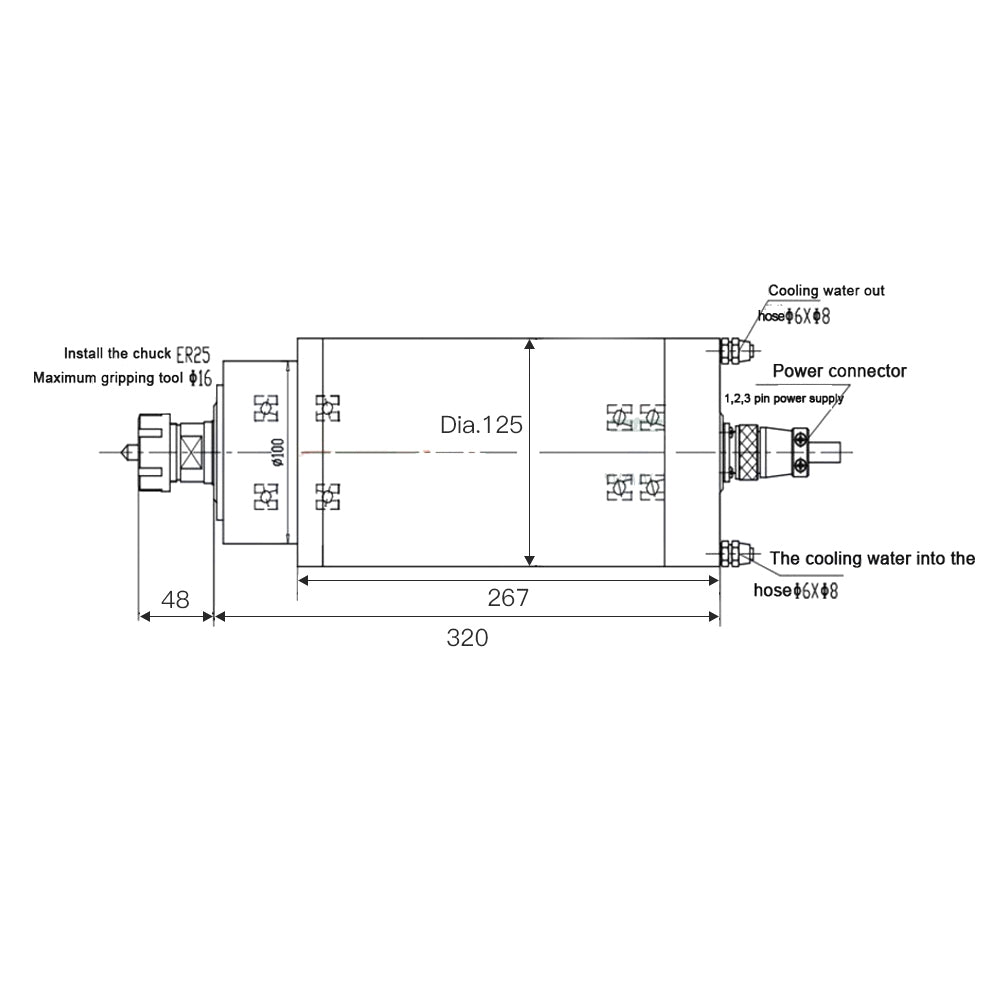

1. Size: 125x298mm
2. Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

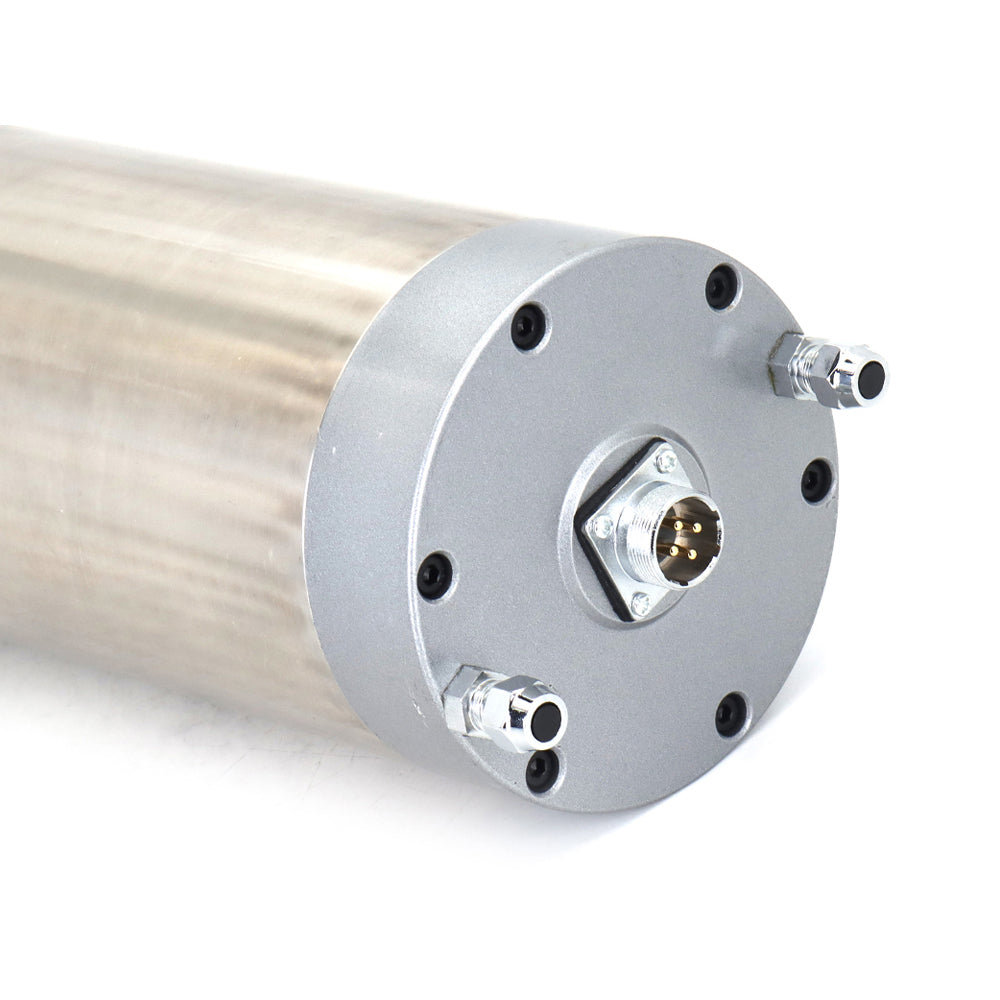

3. Cooling: Water cooling 4. Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1", "2", "3", "4", "1", "2", "3" were connected to inverter (U, V, W),
4. Connected inverter ground. (Pay attention! Our spindle "4" connecting to GND, promised personal safety !!)
5. Power: 6kw
6. Voltage: 220V 12A / 380V 10A
7. Frequency: 0-400Hz
8. Speed: 0-24000rpm
9. Runout Off: 0.01mm
10. 4Pcs angular contact ball bearings
11. Bearing Type: 2x7002C P4 DT & 2x7000C P4 DT

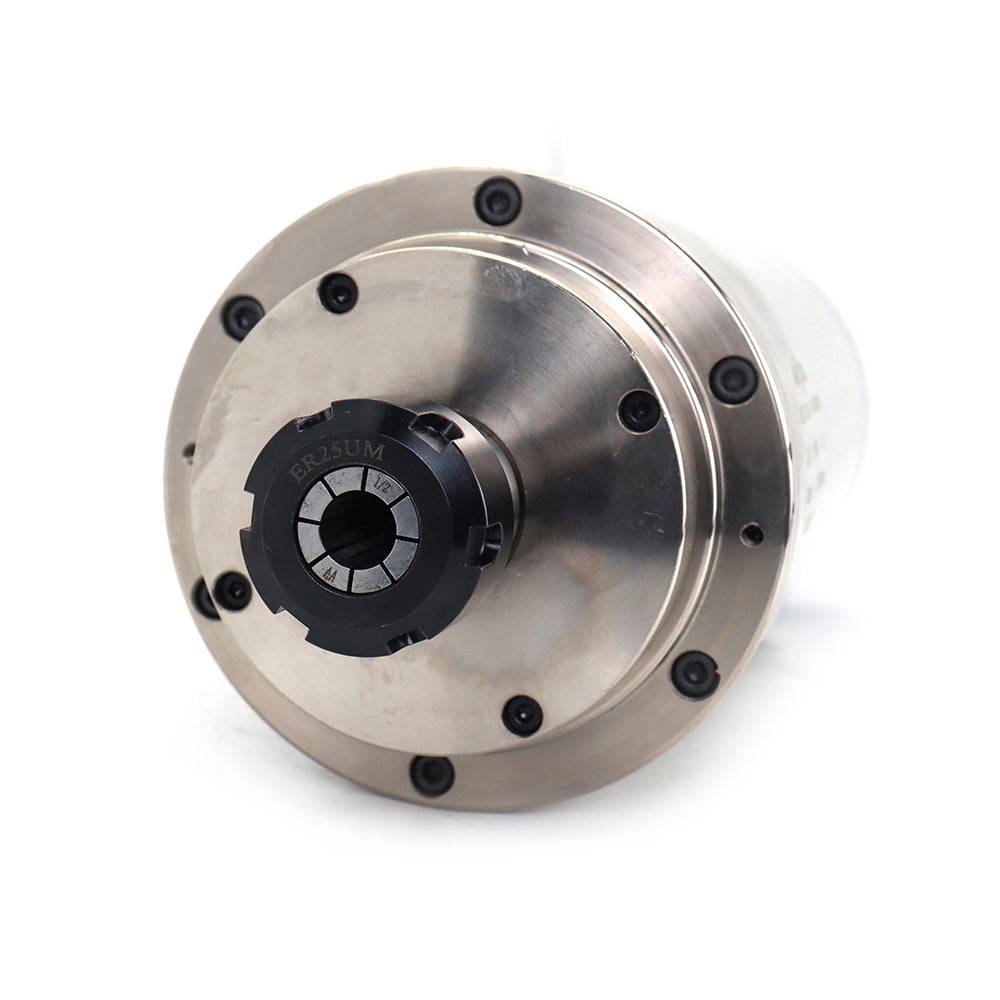

12. Water Cooling ER25 collet chuck nut
13. Grease Lubrication

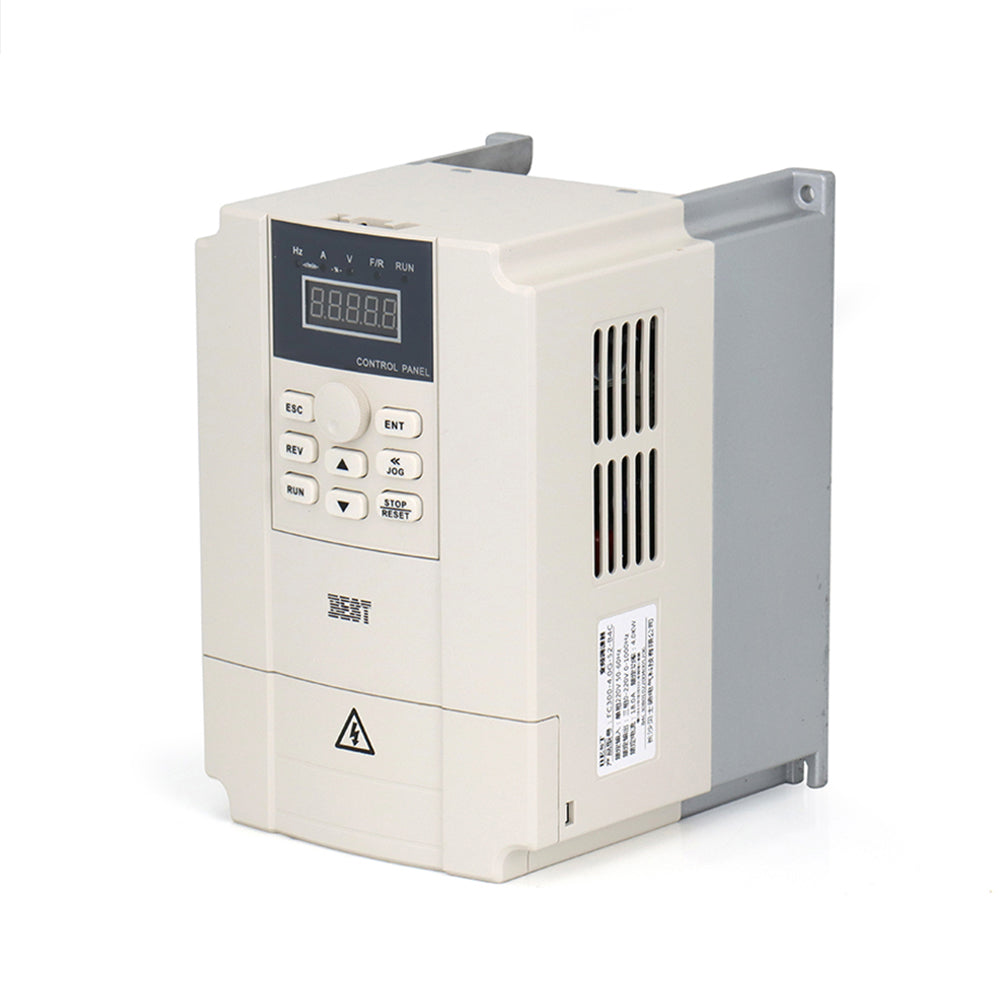

Parameters:
Power: 7.5kw
Input Voltage（Phase）: 220v（1 Phase）/380v（3 Phase）
Output Voltage（Phase）: 220v（3 Phase）/380v（3 Phase）
Input Frequency: 50/60Hz
Input Current: 220v(15A) 380v(8A)
Output Current: 220v(22A) 380v(12A)
Output Frequency: 400Hz
Control Method: V/F control; Open-loop flux vector control
1. Control Mode is SPWM,it is very easy to use and convenient
2. Protection functions are very strong,
3. Fin over-heat protection,
4. Overload protection,
5. Fuse protection,
6. Restart after instant stop,stall protection.
7. Powful function
Features:
1. Adopt full sandblasting appearance treatment
2. Slot design, easy to lock the spindle
3. The cast aluminum has higher precision and is more durable
4. Scientific casting, stronger earthquake resistance
Product Parameters:
Diameter: 125mm
Material: Cast Aluminium
1. Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
2. Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth.
3. Cast aluminium fixture is much heavier than aluminium profile fixture. Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.
1. Power: 80w
2. Maximum Flow: 3500L / H
3. Lift: 3.5m
4. Voltage: 220V
5. Frequency: 50Hz
6. Nozzle: 6 / 8mm(Send by default 8mm, if you need other caliber, please note or contact us)
Features:
1. High Lift ，Large Flow Rate
2. Highly Durable
3. Excellent Insulation
4. Can cool the machine quickly
5. Good quality and long life
6. Big strong power
The shell is made of high quality plastic, which is anti corrosive and high durable.Pumps have excellent insulation thanks to the motor bearing completely sealed.Pumps combione pumping, filtered,oxygen and fountains in one.
Note: Must be used in the water.
Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.
Type: ER25 High accuracy collet
Material: Steel
Quantity: 8Pcs
Precision: ≤ 0.008mm
Hardened & Precision ground
Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.
If you want to change to other caliber, please contact us
We typically ship in 1-3 business days (Mon-Fri). And you will receive your order in 10-15 business days (Mon-Fri). Please know that we are doing the best we can to get orders out promptly.
We send FEDEX by default.
If you need to change other logistics, you can contact customer service.
When your order ships you will receive a separate email providing you with a tracking number to track your order. Sometimes this email gets sorted into spam or promotions folders so be sure to take a look in there if it feels like you have been waiting a little too long.
You can also log into your account and click on the order in question to see the status.
*Please note that sometimes the tracking can take a day or two to be updated by the carrier. If it looks like its not moving, chances are its on its way!
