RichAuto CNC Controller DSP A11 A12S A15 A18 3-axis 4-axis or Plasma

WaveTopSign RichAuto CNC Controller DSP A11 A12S A15 A18 3/4Axis

100 left in stock

370.00

DAYS

HRS

MINS

SECS

Model

A11

A12S

A15

A18

PAYMENT ACCEPTED

High quality

In stock

Fast delivery

Details

Three-axis Linkage Motion Control System-A11

New three-axis linkage motion mode to achieve comprehensive controlling

Support drive and spindle error alarm function

Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.

Support intelligent file checking function.

Parameter backup and restore function to prevent the loss of important parameters.

High anti-jamming intensity passes many CE tests.

Intelligent processing memory, supports power fail safeguard and breakpoint function.

Definable I/O interfaces provide customers a wide range of development platforms.

Plasama Cutting Motion Control System-A12

Adopt high-speed 8-core CPU to achieve stronger computing capacities and fast computing speed.

Perfect U disk compatibility, fast reading speed, safe and reliable U disk processing.

Parameter backup and restore function to prevent the lost of important parameters.

High anti-jamming intensity passes a number of CE tests.

Definable I/O interfaces can control some divides like cylinder, plasma arc voltage adjusting controller, etc.

The DSP system provide border testing function to achieve placing processing materials more conveniently.

New computing mode can prevent damaging during plasma processing.

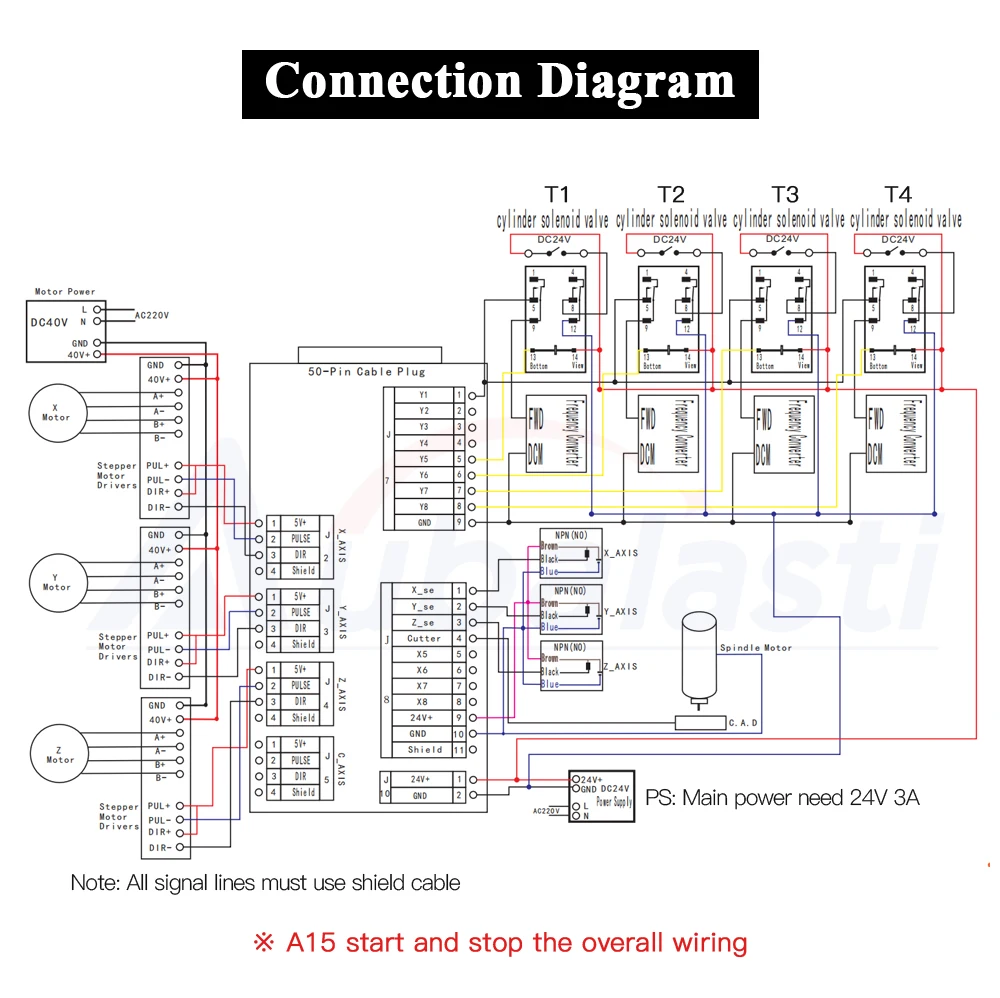

Multi-Spindle Motion Control System-A15

Support cylinder stator multi-cutter control mode.

Indentify ‘T’ order achieved the cutter automatic switching, support processing more cutters at the same time.

Define the amount of the cutters as customers’ requirements

Easy install and adjust

With simple processing definition, easy operate.

Automatic calculate cutters separation distance, ensure multiple cutters sharing the same work piece coordinate system.

Four-axis Linkage Motion Control System-A18

Latest four axes coordinated motion control mode.

Support A/C code format and special ˊMˊ code control.

User definable I/O interface, provide an extensive development platform.

Intelligence processing memory function, support “breaking point processing” and “power failure” function.

More powerful anti-interference performance, pass through multinomial CE tests.

Provide parameters backup and recovery function protect the important parameter from missing.

Achieve complex graph processing, such as cylinder, prism, polyhedron etc.

Widely apply in the system control of Buddha, stair column, sofa and table leg processing equipment and so on.

Effective process and high speed.

Product odel	RichAuto----A11	RichAuto----A12	RichAuto----A15	RichAuto----A18
CPU	DSP	DSP	DSP	DSP
Internal Memory	512MB	512MB	512MB	512MB
Display Screen	128*64 Monochrome LCD	128*64 Monochrome LCD	128*64 Monochrome LCD	128*64 Monochrome LCD
Communication Port	U disk、USB cable	U disk、USB cable	U Disk、USB Cable	U Disk、USB Cable
Controlled Axis Number	3 axes	3 axes or 2 axes	3 axes	4 axes
Control Signal	differential signal	differential signal	Differential Signal	Differential Signal
Drive System	step motor/servo motor	step motor/servo motor	Step Motor/Servo Motor	Step Motor/Servo Motor
Min. Input Unit	0.001mm	0.001mm	0.001mm	0.001mm
No Volt Protection	support	Support (Arc Ignition Delay)	Support (Arc Ignition Delay)	Support
Breakpoint Processing Function	8	Support(Automatically Adjustable High)	Support(Automatically Adjustable High)	8
External Power Supply Voltag	24V DC	24V DC	24V DC	24V DC
Manual Mode	Continuous、point move、distance	Continuous、point move、distance	Continuous、Point Move、Distance	Continuous、Point move、Distance
Interpolation Way	Line、Arc	Line、Arc	Line、Arc	Line、Arc
Soft/Hard Limit	Support	Support	Support	Support
Max. Pulse Frequency	1M/S	1M/S	1M/S	1MHz
Password Protection	support	support	support	Support
Support Language	simple Chinese/traditional Chinese、English、other languages	Simple Chinese/Traditional Chinese、English、other languages	Simple Chinese/Traditional Chinese、English、other languages	Simple Chinese/Traditional Chinese、English、other languages
Standard Configuration	(1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring	(1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring	(1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring board;(1) Data CD	(1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring board;(1) Data CD
