Features:
1. The system has a highly reliable design and has the ability to resist plasma interference, lightning strikes, and surges.
2. Practical flame/plasma cutting process, during plasma processing, the corner speed control and height controller control are automatically completed; remote operation can be achieved with a wireless remote control.
3. It has a slit compensation function and detects whether the compensation in the program is reasonable, and makes a corresponding report for the user to choose;
4. Breakpoint recovery, automatic power-off recovery function, automatic memory breakpoint;
5. Arbitrary selection of segments and selection of perforation point processing functions;
6. It has the function of epitaxial perforation suitable for thick plates and bridging function suitable for thin plates;
7. Rewind, segment selection, breakpoint recovery, optional punching position and other functions, which greatly facilitates the user's manipulation;
8. Adopting special small line segment processing function, smooth walking, can be widely used in metal blanking, etc.;
9. Contains 50 kinds of graphics (expandable) parts library, including commonly used basic processing parts;
10. Fully compatible with StarCAM nesting software, and compatible with mainstream nesting software such as FASTCAM;
11. Chinese and English operation interface conversion, dynamic graphic display, 1 to 8 times graphic magnification, automatic tracking of moving points, using U disk to read programs and timely software upgrades.
12. Support eight languages: Slovak, Japanese, Czech, French, Spanish, Russian, English, Chinese


Product Specifications:
1. Processor: adopts industrial-grade ARM processing chip;
2. Display: 10-inch color LCD display;

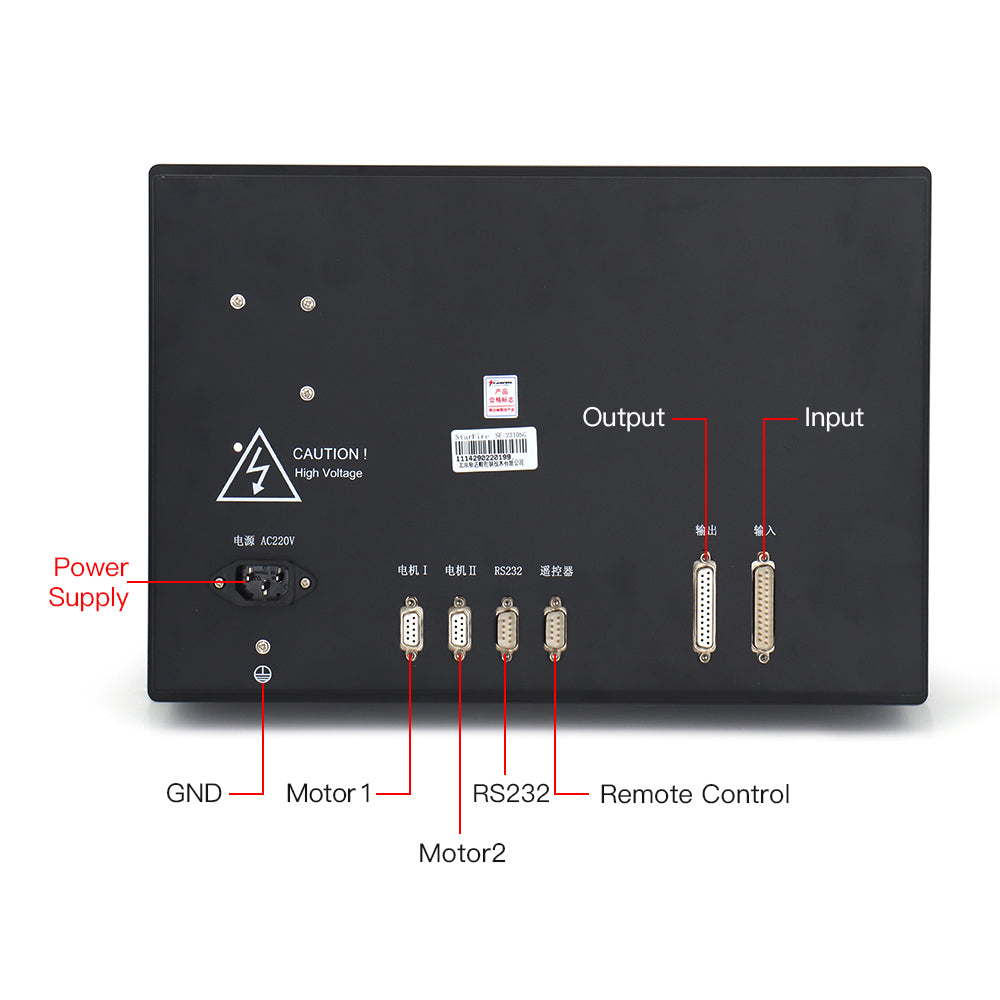

3. Input \ Output: The system provides 16 channels of photoelectric isolation input and 14 channels of photoelectric isolation output;
4. Number of linkage axes: 2 axes, which can be expanded to 4 linkage axes;
5. Maximum speed: not less than 24m/min;
6. Pulse equivalent: flexible adjustment;
7. Storage space: 4G large user program storage capacity, processing programs are not restricted;

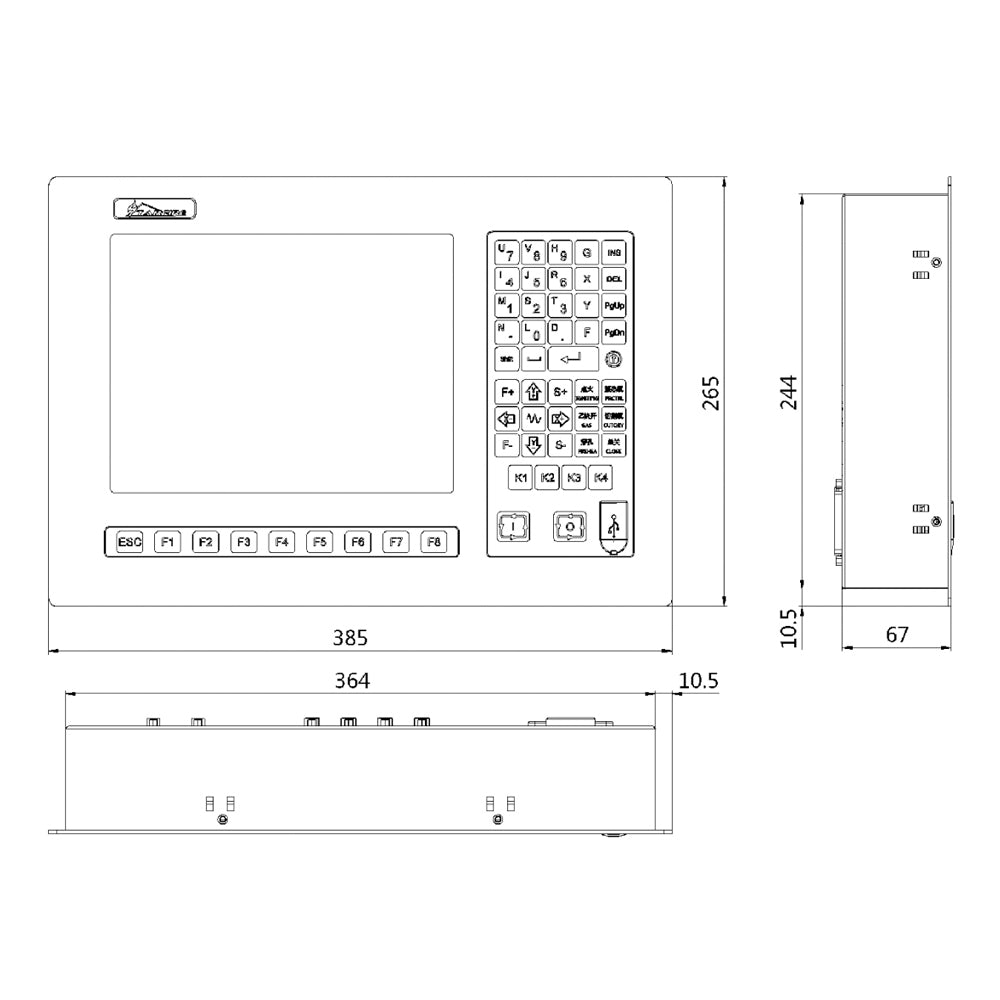

8. Chassis size: 410×310×119 (mm);
9. Working temperature: 0℃ ～ +40℃; storage temperature: -40℃ ～ +60℃;


Typical Application:
SF-2310S-QG cutting machine numerical control system is suitable for all kinds of flame/plasma, waterjet cutting, laser cutting machines, and is widely used in metal processing, advertising, stone and other industries.

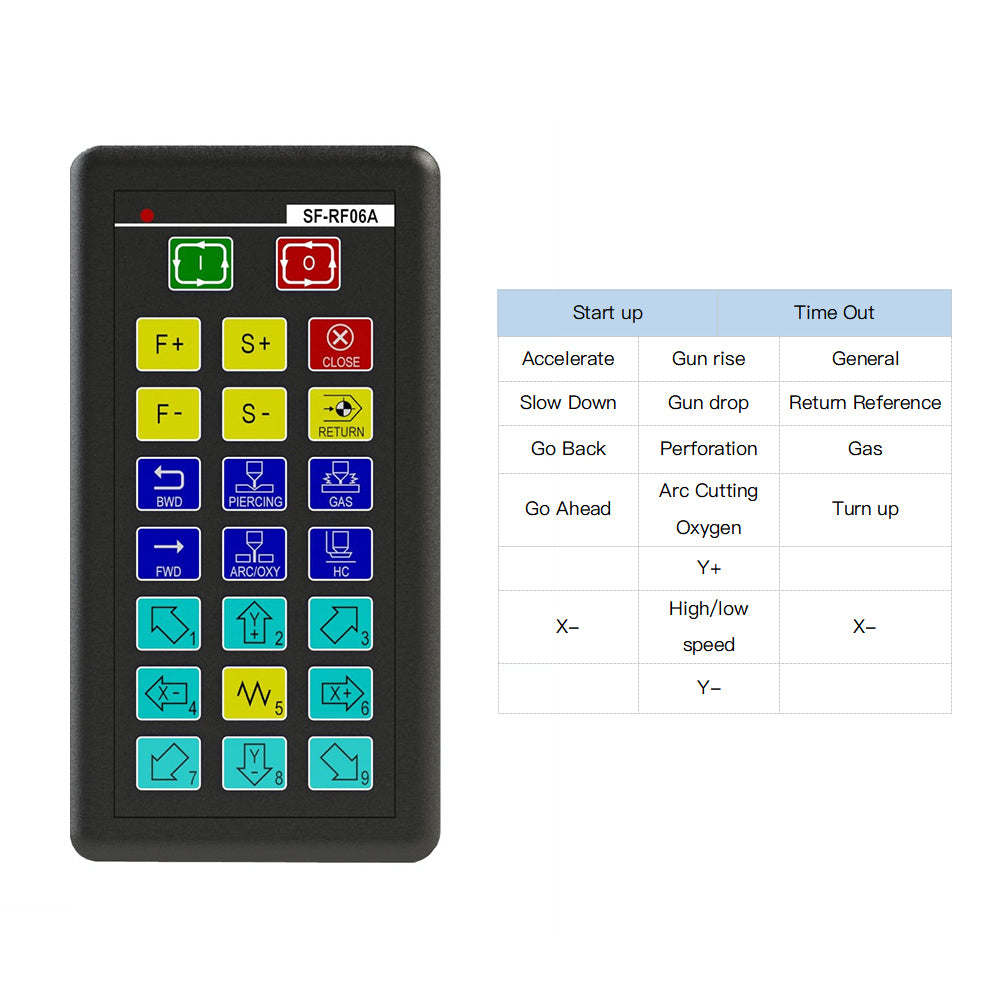

1. Using 2.4G frequency, strong anti-interference

2. Range of action 30 meters

3. Up to 80 devices can be used at the same time

4. It can be used in conjunction with cutting machine, welding machine numerical control system, welding PTZ camera and other controllers
