Galvo scanning system and software control system:
The galvanometer scanning system adopts a high-precision and high-reliability 3D scanning galvanometer, which has high scanning accuracy, fast speed and stable performance, and meets the requirements of long-term continuous work.
The software control system takes WINDOWS XP as the operating platform, with all Chinese interfaces, compatible with files output by AUTOCAD, CORELDRAW, Photoshop, CAXA and other software, and can perform barcode, QR code, graphic text and other marking, and supports PLT, PCX, DXF, STL, BMP and other file formats, directly use SHX, TTF fonts.
The system can switch freely between 2D and 3D modes, automatically fit patterns on the STL model, automatically layer deep and embossed patterns, and automatically generate processing tracks on high and low surfaces and various special-shaped surfaces.
Main Features:
1) Unique optical path correction method to ensure consistent accuracy in the entire processing range
2) Use imported isolators to protect the fiber laser window to enhance stability and laser life.
3) Reasonable mechanical structure design ensures the running accuracy of the whole machine, especially suitable for fine and precise marking.
4) The electro-optical conversion efficiency is high, and the power consumption of the whole machine is less than 1200W, which is 1/10 of the lamp-pumped solid-state laser marking machine, which greatly saves energy consumption.
5) The optical cavity is fully enclosed, no maintenance is required, and the service life is long.
6) The data processing is highly integrated, and the operation is simple and fast, which is 2-3 times that of the traditional marking machine.
7) Can directly read common data file formats (such as: PLT, DXF, STL, STP)
Working Environment Requirements:
1) The ambient temperature is required to be between 15 and 40 °C.
2) The humidity requirement is 40%-80%. No condensation, a dehumidifier should be installed.
3) Power supply grid requirements: 220V; 50Hz.
4) Power supply grid fluctuation: ±5%, the grid ground wire meets international requirements. In areas where the voltage amplitude is more than 5%, electronic automatic voltage stabilization and current stabilization devices should be installed.
5) There should be no strong electromagnetic signal interference near the installation equipment. Avoid radio transmitting stations (or repeater stations) around the installation site.
6) Foundation amplitude: less than 50um; vibration acceleration: less than 0.05g. Avoid a large number of punching and other machine tools nearby.
7) The equipment space is required to be smoke-free and dust-free, and avoid a working environment with serious dust such as metal polishing and grinding.
8) Air pressure: 86-106kpa.
9) In some environments, anti-static floors should be installed, and shielding should be strengthened.
Industry Application:

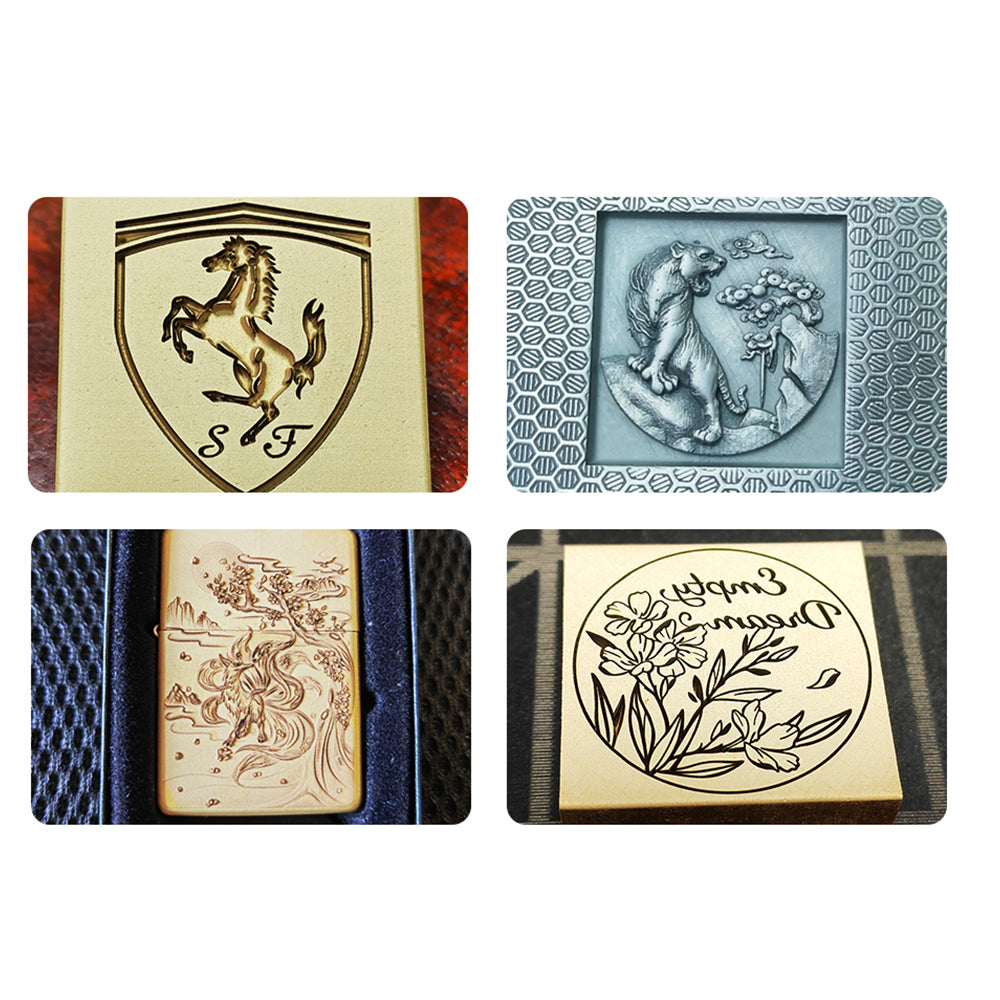

Any metal material and most plastics have a good absorption of laser light with a wavelength of 1064nm, so it is especially suitable for surface engraving of metal and plastic products, such as hardware, ceramics, precision instruments, auto parts, glasses and clocks, sanitary ware, medical Equipment, instrumentation, spray paint
Products, ABS plastic, resin material capacitors, inductors, computer keyboards, various instruments and control panels, nameplate display boards, ceramics, plastics, etc. Can be used in electronics, handicrafts, car audio and other industries. Due to its high efficiency and environmental protection, it is an ideal improvement solution for traditional processes.
Combined with the dual environmental protection measures of the lower ventilation system, the flue gas generated in the processing process can be quickly and thoroughly discharged from the processing area; and the dust purifier (optional) can make the smoke and dust discharged during the processing process processed by this auxiliary equipment. , does not pollute the atmosphere, so as to basically meet the requirements of "zero emission".
