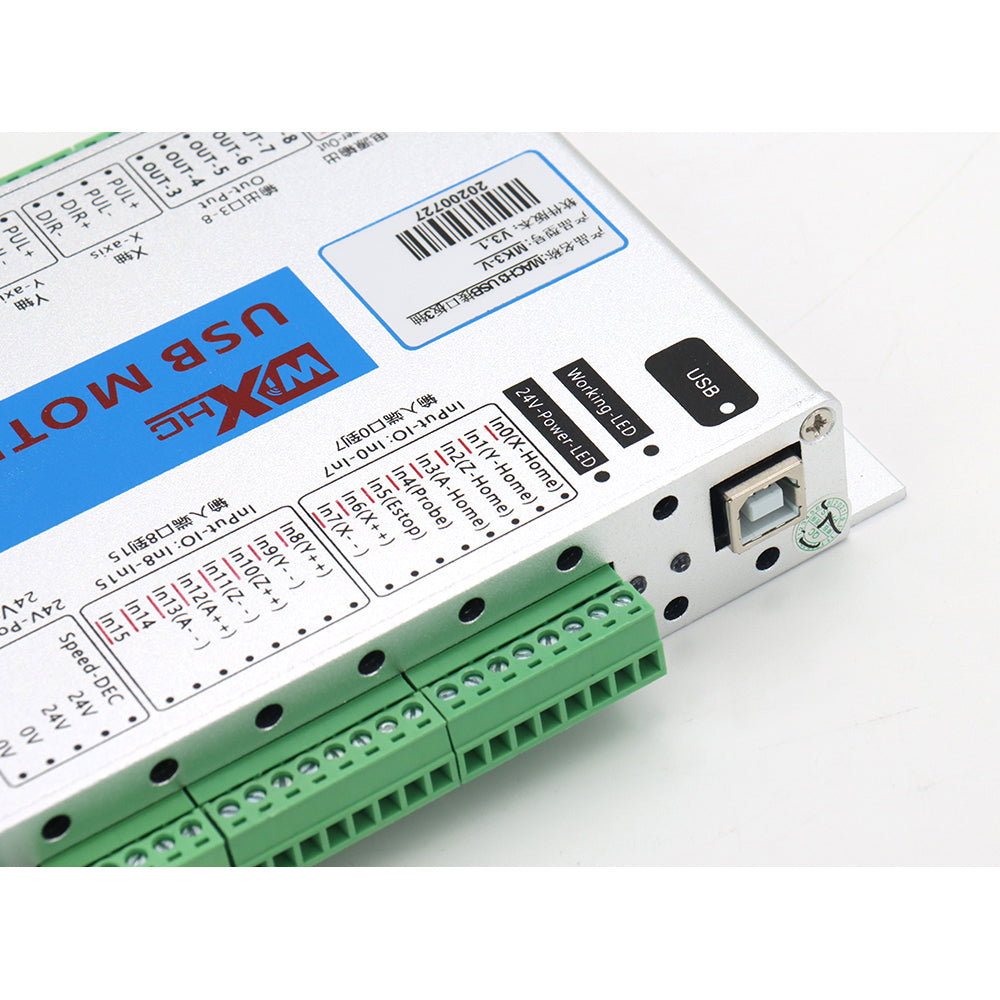

WaveTopSign XHC Mach3 3-6Axis USB Motion Control Card
1. Standard usb device and work at all windows with usb hot plug.
2. The card state is monitored.
3. Support 6 axis to motion at the same time.
4. Step Pulse frequncy Up to 2000khz，support servo and step motor driver.
5. The usb state indication with led
6. All io is isolated,anti-noise and stable performance
7. Spindle control with PWM and step/pulse
8. Aluminum shell,shield the interference.
speed index function.
9. Power off and continue function

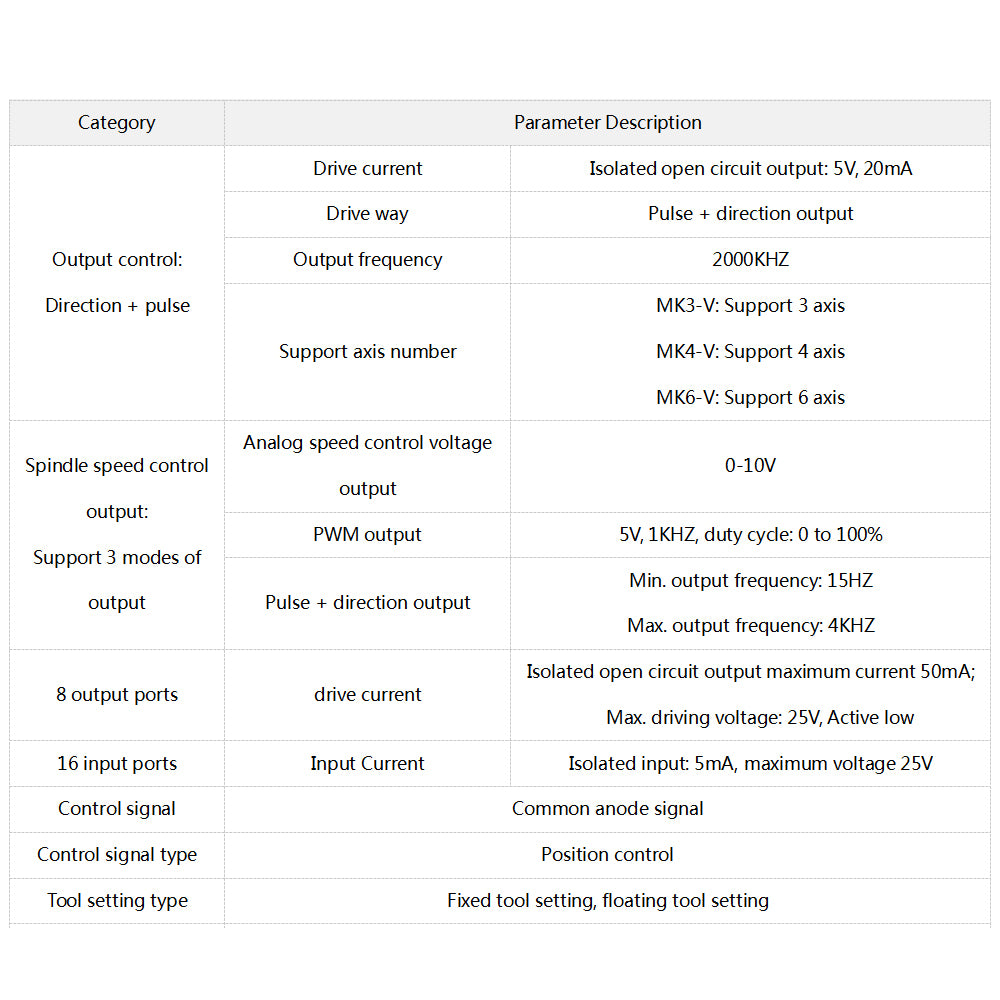

Characteristic:
1. High speed-up to 2000KHZ differential pulse output;
2. Strong functions-up to 6-axis motion control, 16 straight tool magazines and four-process functions can be supported;
3. Many IO ports-support 16 input ports, 8 output ports;
4. High compatibility-support all brands of stepper/servo drives/frequency converters;
5. Diversified communication interfaces-provide three types of USB interface, Ethernet interface, PCIE interface for users to choose;
6. High stability-all adopt optocoupler isolation anti-interference design, power supply anti-insertion, power supply isolation, power supply interference filtering, PESD anti-static protection.
We typically ship in 1-3 business days (Mon-Fri). And you will receive your order in 10-15 business days (Mon-Fri). Please know that we are doing the best we can to get orders out promptly.
We send FEDEX by default.
If you need to change other logistics, you can contact customer service.
When your order ships you will receive a separate email providing you with a tracking number to track your order. Sometimes this email gets sorted into spam or promotions folders so be sure to take a look in there if it feels like you have been waiting a little too long.
You can also log into your account and click on the order in question to see the status.
*Please note that sometimes the tracking can take a day or two to be updated by the carrier. If it looks like its not moving, chances are its on its way!
