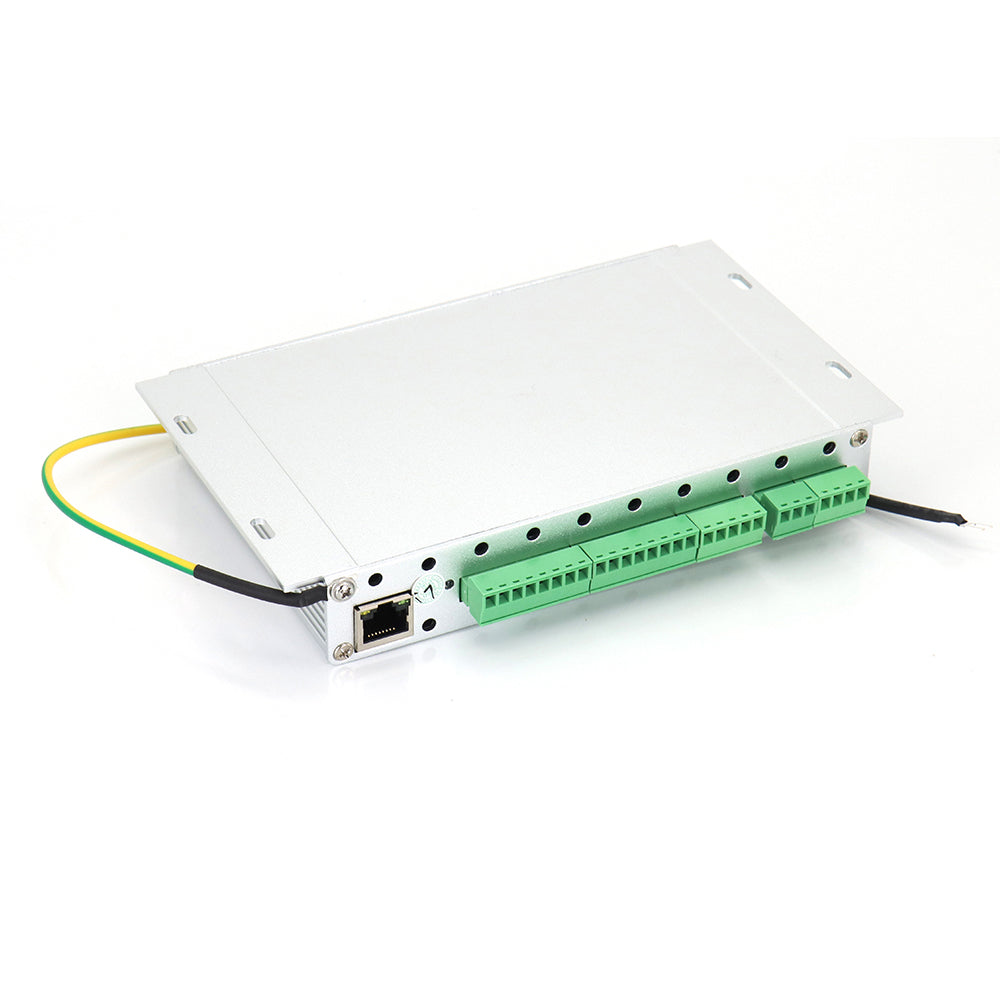

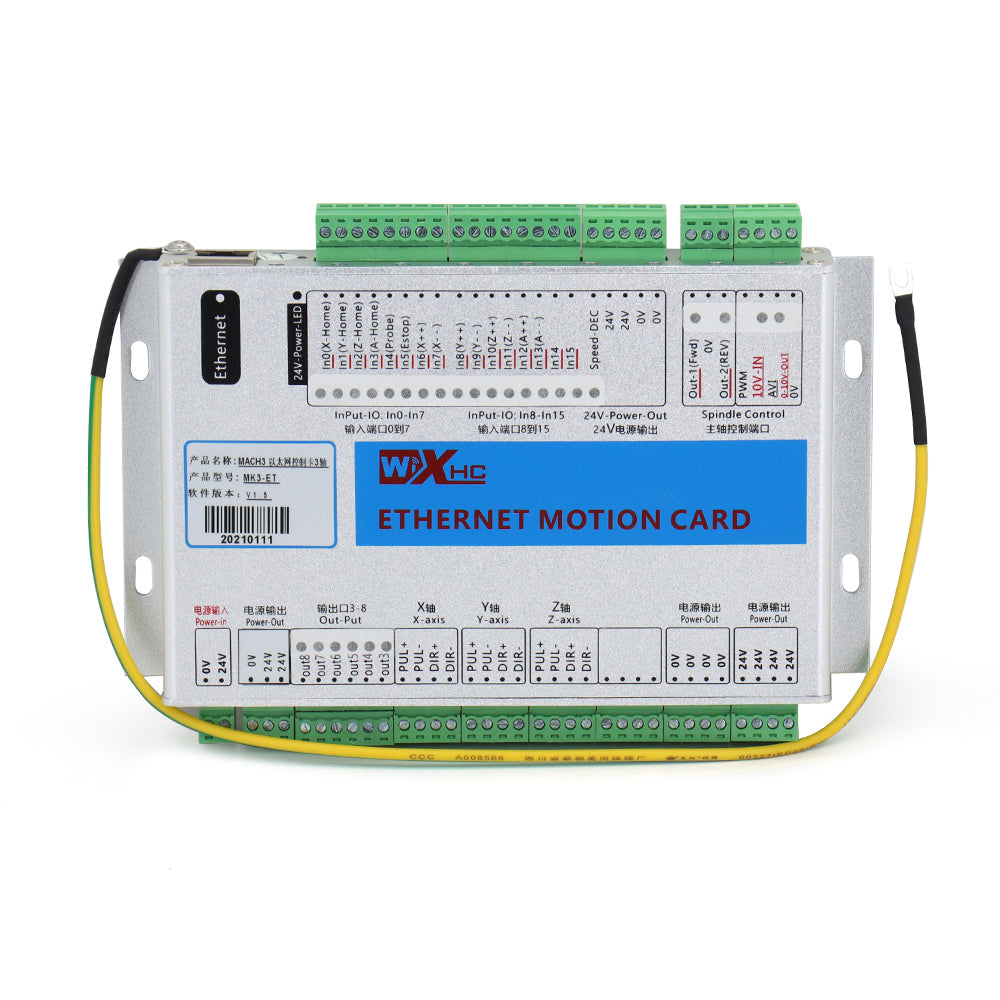

WaveTopSign XHC Mach3 3-6Axis Ethernet Motion Control Card
Application:MKX-ET has 3 series：
1. MK3-ET：3 axis motion card.
2. MK4-ET：4 axis motion card.
3. MK6-ET：6 axis motion card.
Works with Mach3 CNC system under all windows platformKey
Features:
1. Support all versions of Mach3, only suitable for Windows operating system, only supports Ethernet interface, the need for IP communication address settings.
2. Support spindle speed feedback function.
3. Support power-off resume function.
4. Support up to 10 meters Ethernet cable, no need to install the driver, plug and play;
5. Support up to 6-axis linkage, including jogging 6-axis linkage. (Depending on the model, the number of axes is different)
6. Has a 2000KHz pulse output, Maximum step-Pulse frequency is 2000KHz 16 general-prupose input, 8 output.
7. support differential signal output
8. support servo / stepper motor.
9. Has a status indicator, you can prompt the connection status, Mach3 connection status, operation, various status at a glance.
10. Has 16 input ports, 8 output ports, support the expansion of input and output all IO port isolation, strong anti-interference, stable performance.
11. Supports spindle PWM speed output; Supports spindle pulse and direction output;
12. Support spindle 0 to 10V analog voltage output.
13. 184x127x30 mm, aluminum housing, shielding interference, stable and reliable.
