WeiHong Fiber Laser Controller LS1500 / LS3000 / LS3000M PM95A+ Lambda5E(LD5E-04) 5S For Plane Cutting
1. Enclosed controller, oil-proof, dust-proof, and water-proof, enhanced stability;
2. Input polarity adjustable, inputs active high/low supported;
3. Serial communication, high speed 485 interface, baud rate 10Mbps;
4. Max. pulse output frequency:
5. 1MHz;Fewer cables and easier wiring;
6. On-line update of firmware;
7. hardware adaptable and software customizable;
8. Hardware encryption and software encryption for safety concerns;
9. Encoder feedback from both incremental and absolute encoders available;
10. 2 to 5 axes motion control;
11. Time registration function for drivers available.

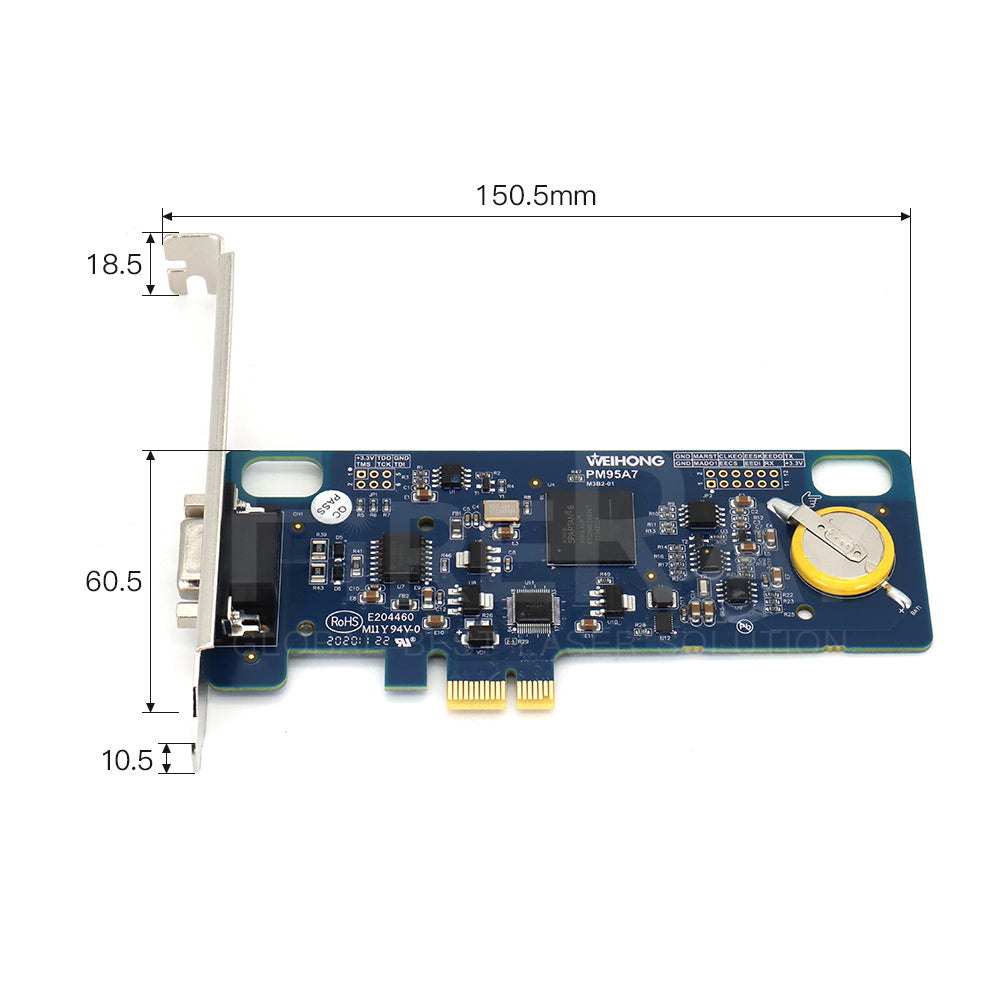

PM95A motion control card:
PM95A control card is usually used in conjunction with Weihong NcStudio motion control software, which can complete the motion control of various engraving machines, engraving and milling machines, drilling machines, cutting machines, etc. It is powerful and easy to use.
Performance:
1. Support online update and upgrade of FPGA program through the upper computer software.
2. Support dual backup of firmware program, FLASH data revision and write protection function.
3. Support Phoenix and PCI-E communication, used to connect Lambda terminal board.
4. Support data encryption and registration functions.
5. Strong adaptability.
6. The appropriate Lambda terminal board can be selected according to the number of axes and whether the encoder feedback function is required.
Safety Precautions:
Please pay special attention to the following items when operating this product:
1. This product is a precision instrument. Do not disassemble the product if you are not the original maintenance personnel or the electrical control personnel of the relevant machinery factory.
2. Do not insert the PM95A series board card into the PCI slot by mistake.
3. Ensure that the machine tool is well grounded.
4. Do not insert or remove the board card when powered on.
5. Please firmly connect the board stopper to the computer case.
1. PM95A communicates with the external pci-e bus, ADAPTS to the mainstream computer mainboard in the market, interacts with the rhonda Phoenix bus, and enjoys high speed and stability
2. NC68A all-in-one machine adopts fan-less low-power design with excellent performance and is suitable for complex industrial environments;Small in size;Convenient maintenance, support one-button restore function

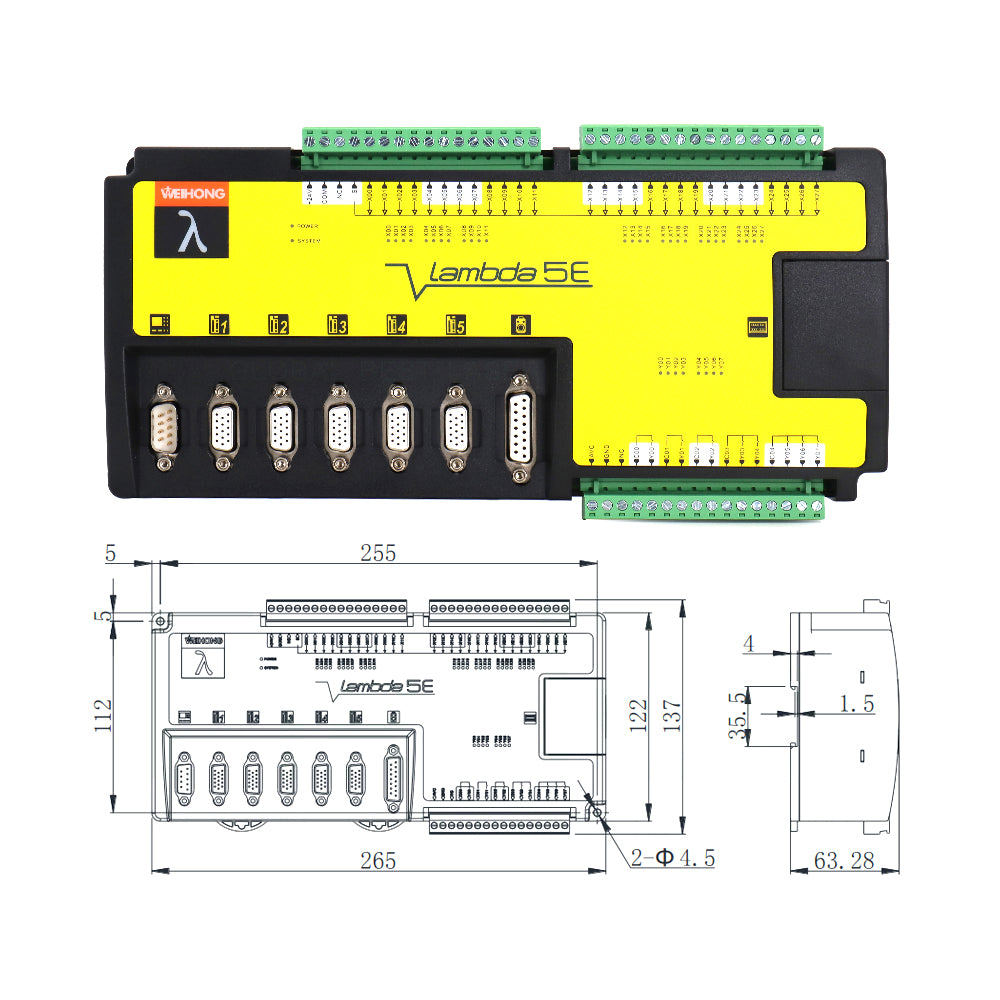

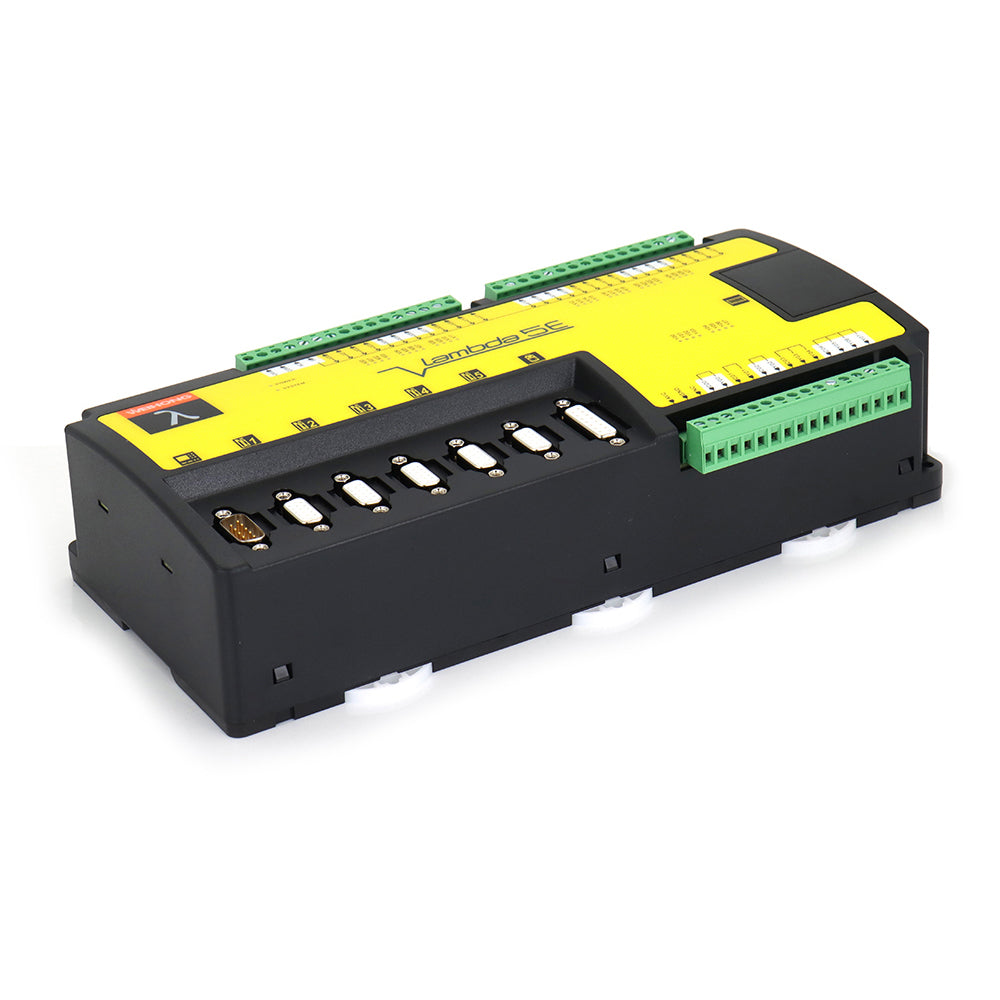

3. Lambda 5E serial communication, tell the 485 interface, baud rate of 10Mbps, the highest pulse output frequency of 1MHz, support incremental encoder feedback and absolute encoder feedback, the whole system supports 2-5 axis motion control.

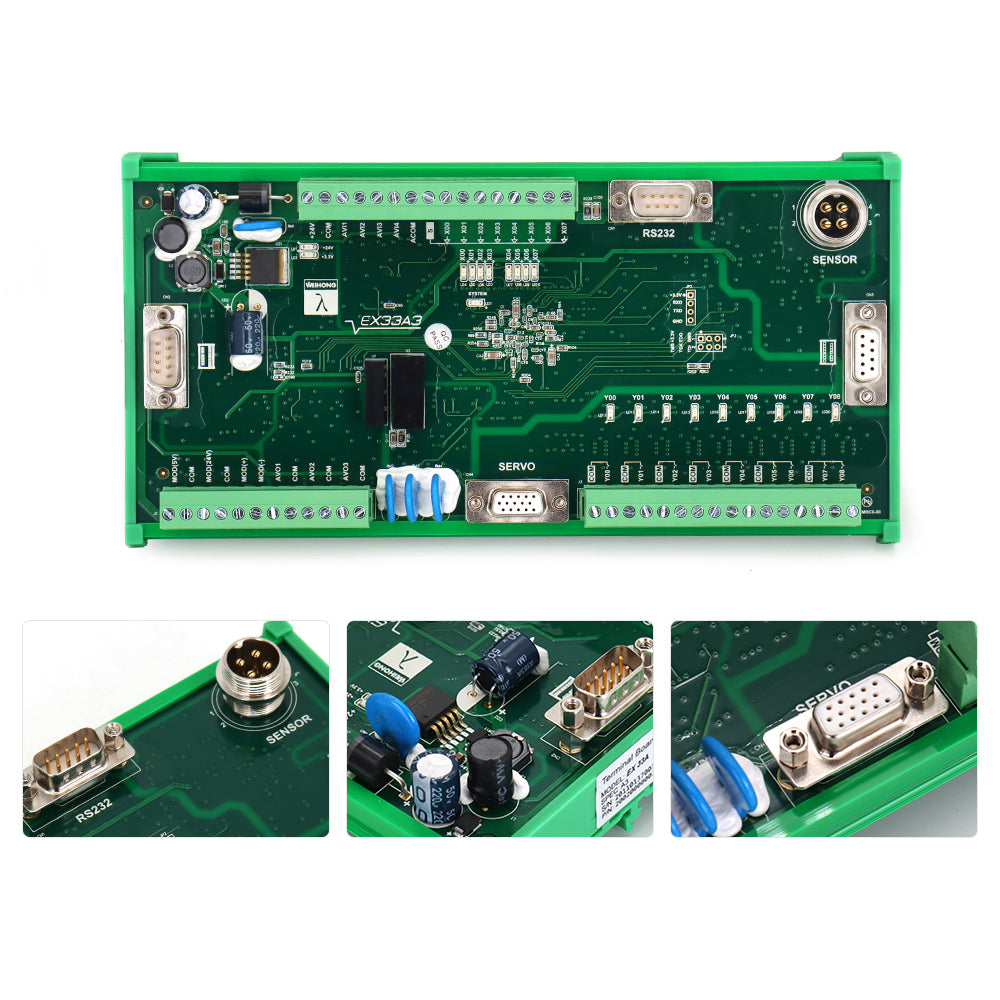

4. Increased EX33A servo controller, analog input and output support 3 road, support for multiple modulation signal, the adapter at home and abroad of various laser
5. EX37A prates ProCutter cutting head special servo controller, general function similar to EX33A, increase along the RS485 interface, analog output to upgrade to 12.
