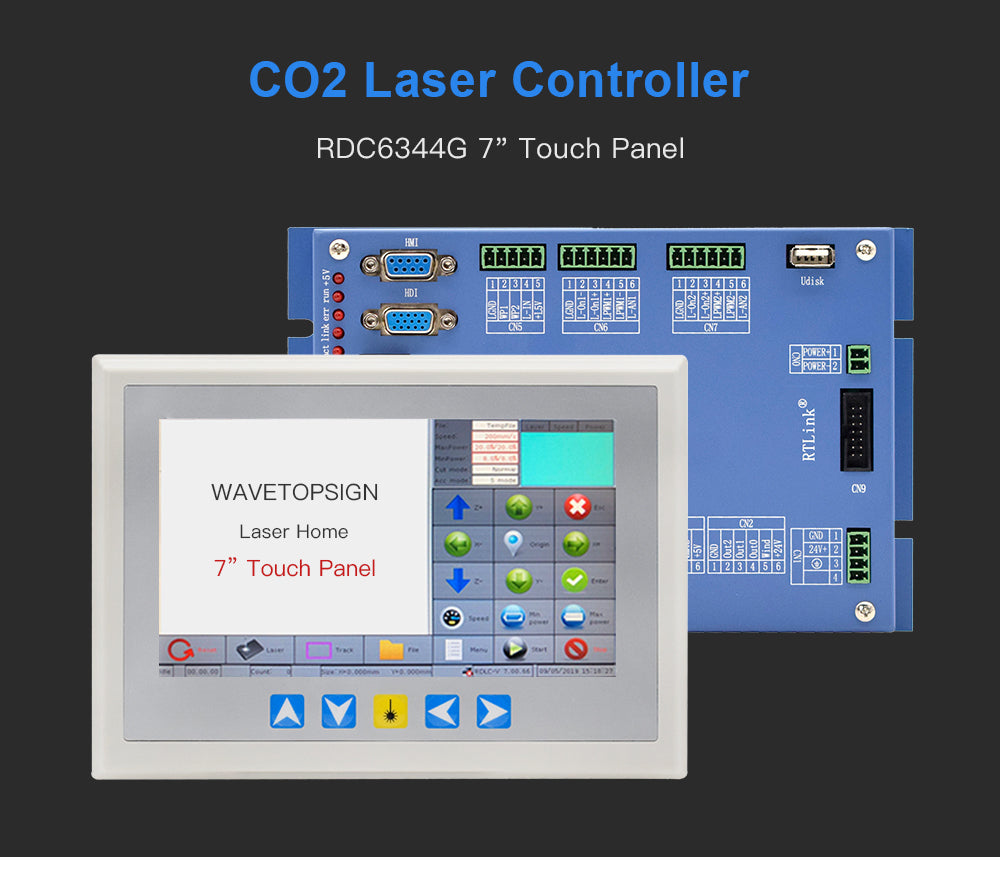

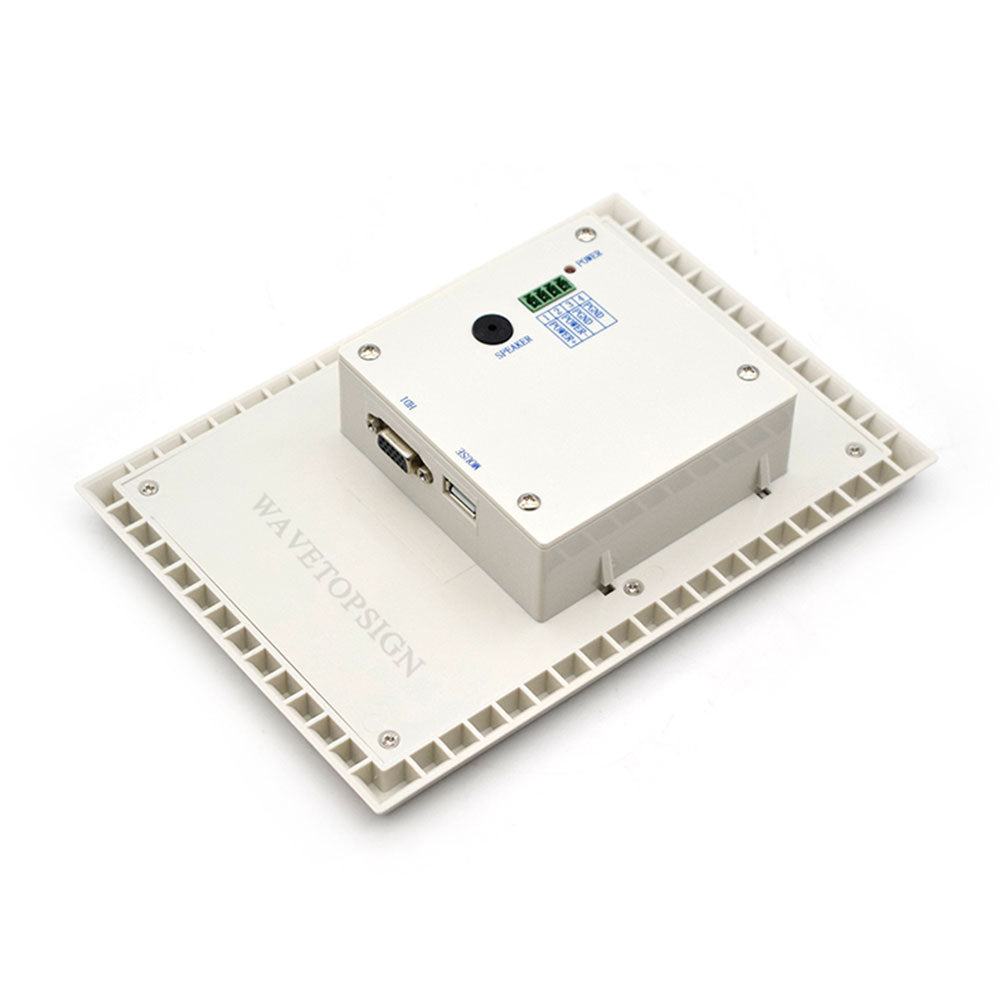

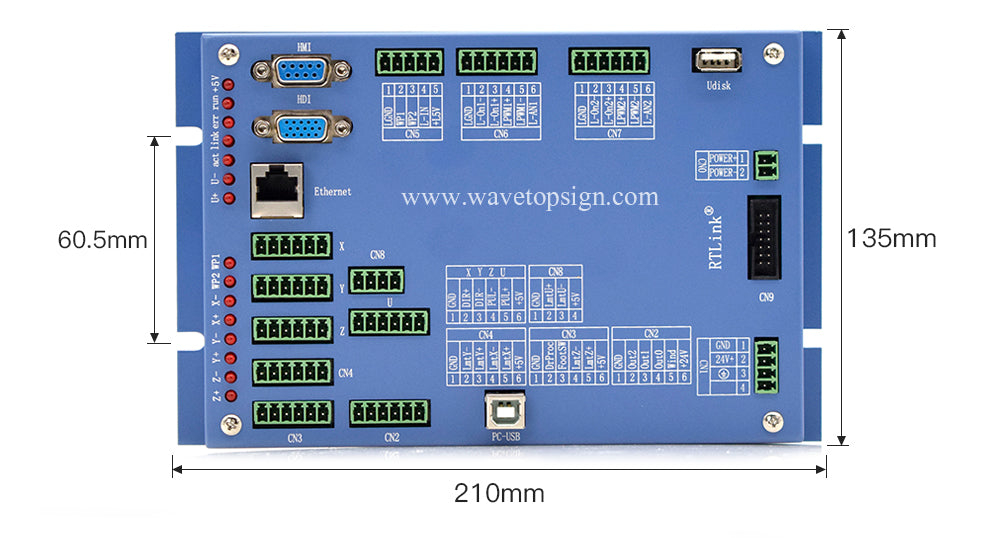

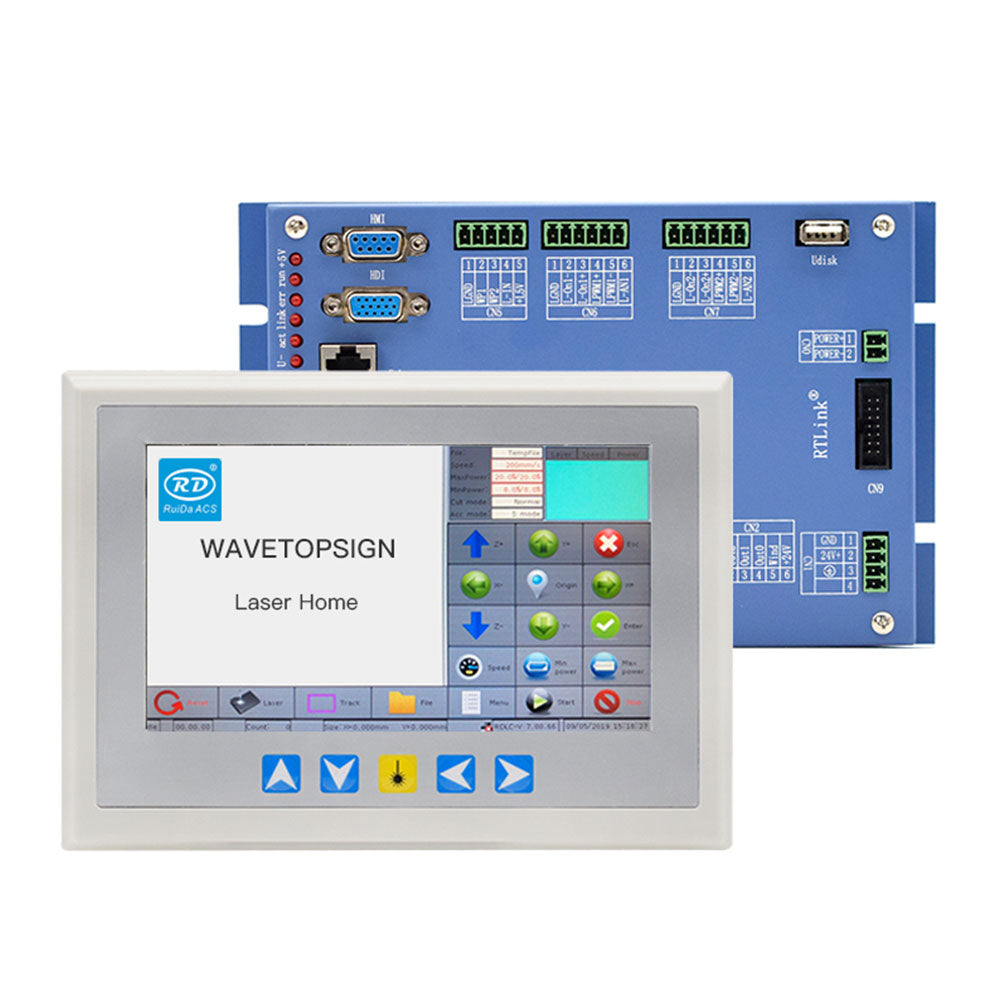

WaveTopSign Ruida RDC6344G Laser Controller
Features:
1. Digital laser control signals:
(1) Differential output, TTL level, drive capability 20 mA
(2) PWM frequency 2K-5K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 4.5 V
2. Analog laser control signal:0 ~ 5V tracing adjustable automatically
3. Motor control signal:differential output, TTL level, drive capability 20 mA
4. USB:Max. transmission rate 12M bps;The longest distance is 5 meters.
5. Network: the Max. transmission rate is100M; the Max. transmission distance is 200M.
6. Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
7. Output:4-channel, photoelectric isolated OC gate output,the max. drive capability is 500mA
8. Input:4-channel, photoelectric isolated input,TTL level
Introduction:
RDC6344G system is the lastest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure. Based on LINUX human-machine operation sysytem, with better operation interface and stronger functions, exellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable analog/digital laser power control interface, strong comopatible U disk drive program, multiple ways gerneral/dedicated IO control. Intergrated dedicated time system supporting hardware encryption algorithm.
