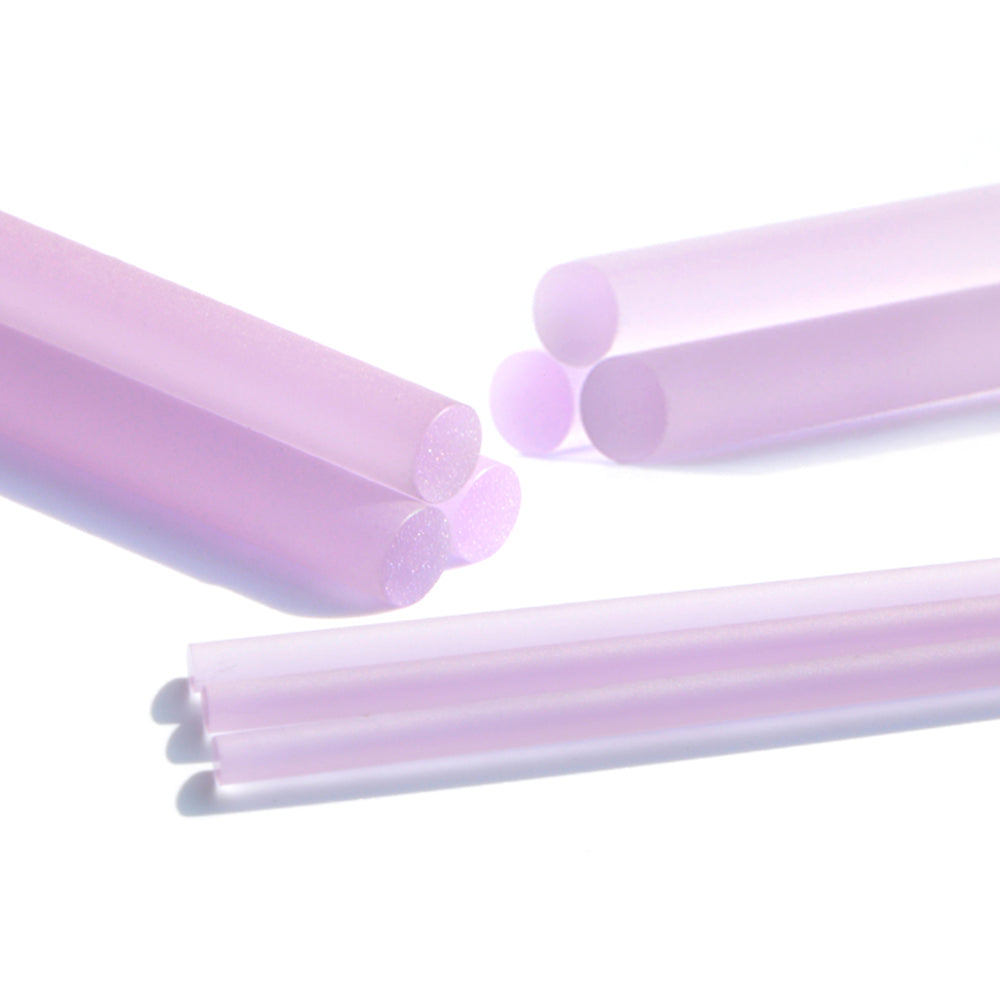

WaveTopSign YAG Crystal Rod Dia.6mm 7mm 8mm
|
Nd doping concentration |
0.5─1.2 atm % |
|
Orientation |
<111> ±5° |
|
Flatness |
<λ/10 @ 632.8 nm |
|
Parallelism |
≤10" |
|
Verticality |
≤5 ′ |
|
Surface finish |
10/5 Scratch / Digper MIL-O-13830A |
|
Optical quality |
Interference fringes: ≤ 0. 125 /inch Extinction ratio: Ф3－Ф6.35 ≥ 28dB Ф7－Ф10 ≥ 25dB |
|
size |
Rod: Ф(3～10)mm×(30～180)mm (L) Slat: (3～12)mm×(6～24)mm×(60～180)mm (L) |
|
Dimensional tolerance |
Diameter: +0/-0.05mm Length: ±0.5mm Chamfer: <0.1 mm @ 45? |
|
Anti-reflection coating |
≤ 0.2% (@1064nm) |
|
High reflective film |
>99.8%@1064nm and R<5%@808nm |
|
Other high reflective film |
Such as HR @ 1064/532 nm, HR @ 946nm, HR@1319 nm，Other bands are also applicable. |
|
Laser damage threshold |
> 500MW/cm2 |
|
Laser characteristics |
Long pulse point efficiency: 3.3% (lamp pump, 20J input), long pulse slope efficiency: 4.2% |
Advantages:
1. High gain, low threshold, high efficiency
2. High optical quality, low loss
3. High mechanical strength, excellent thermal conductivity and thermal shock resistance
4. Suitable for a variety of laser work mode (continuous, pulse, Q switch, clamping, multiplier, etc.)
5. Suitable for high average power solid-state lasers
We typically ship in 1-3 business days (Mon-Fri). And you will receive your order in 10-15 business days (Mon-Fri). Please know that we are doing the best we can to get orders out promptly.
We send FEDEX by default.
If you need to change other logistics, you can contact customer service.
When your order ships you will receive a separate email providing you with a tracking number to track your order. Sometimes this email gets sorted into spam or promotions folders so be sure to take a look in there if it feels like you have been waiting a little too long.
You can also log into your account and click on the order in question to see the status.
*Please note that sometimes the tracking can take a day or two to be updated by the carrier. If it looks like its not moving, chances are its on its way!
