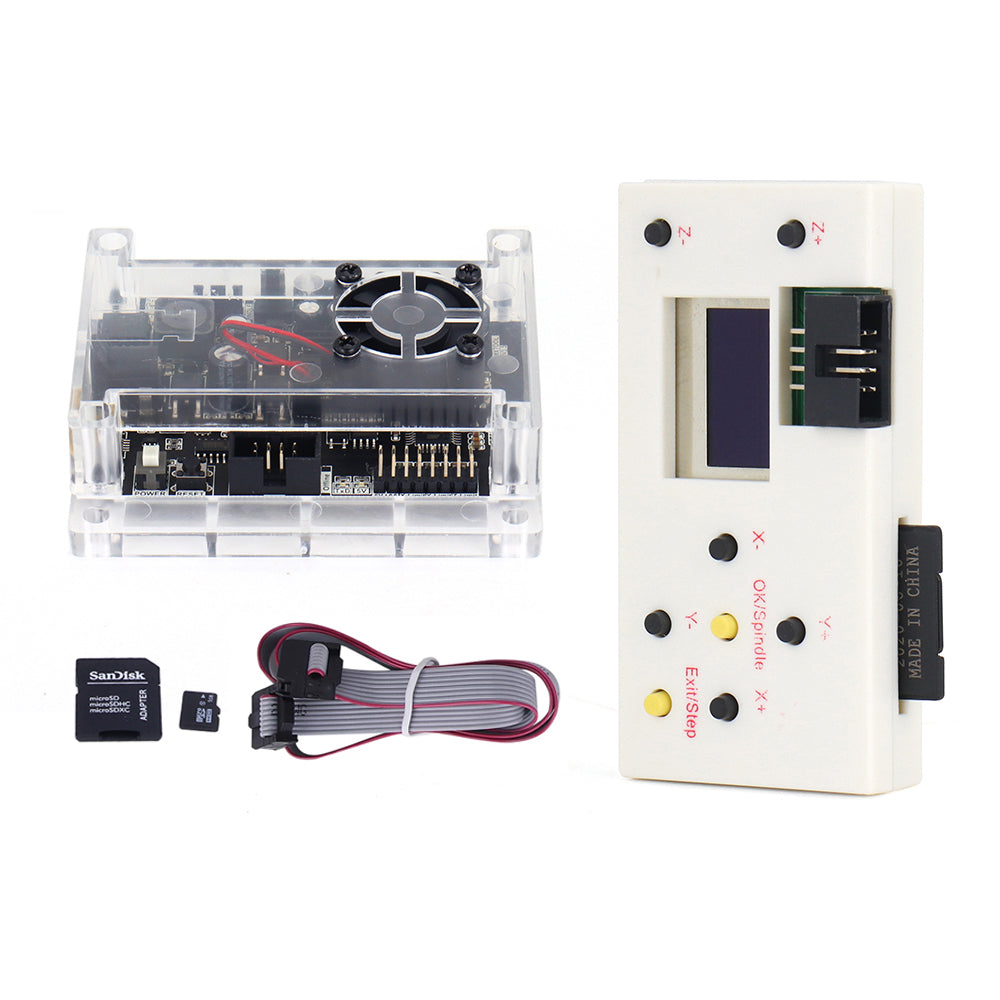

WaveTopSign 3Axis GRBL Offline Controller Board
Introdcution:
GRBL CNC One-piece control board, three-axis drive + spindle drive, can directly drive the three-axis system + spindle power control, eliminating the need for electrical connection, suitable for ordinary engraving machine and laser engraving machine, DIY is essential ! ! !
New upgrade of control board:
1. GRBL1.1f firmware, stable performance
2. Offline engraving (optional offline module), offline tool settings, engraving
3. The laser supports PWM/TTL number control, and the power is adjustable from 0-100%!
4. The spindle supports PWM power 0-100% adjustable
5. Stepper motor overcurrent protection to avoid damage, upgrade integrated stepper motor drive, 2A high current, high stability
6. The laser directly enters the picture engraving, no programming, no design, simple and convenient!
7. Professional shell protection, the fan actively dissipates heat and does not heat up for a long time.
Specification:
Connection: USB (USB-CH340)Software: GRBL controller, UniversalGcodeSender
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
Specification of offline controller:
Press Z+ and Z- , the Z axis will move up and down.
Press X+ and X- , the X axis will move left and right.
Press Y+ and Y- , the Y axis will move Front and Back.
Press SPIN: Spindle on (Laser on), Spindle off (laser off)
Press SMOD: return
Press Z+ for 5 seconds, change the Language to English.
SD card: Included, you need a SD card reader to write into the root directory G-code files.
