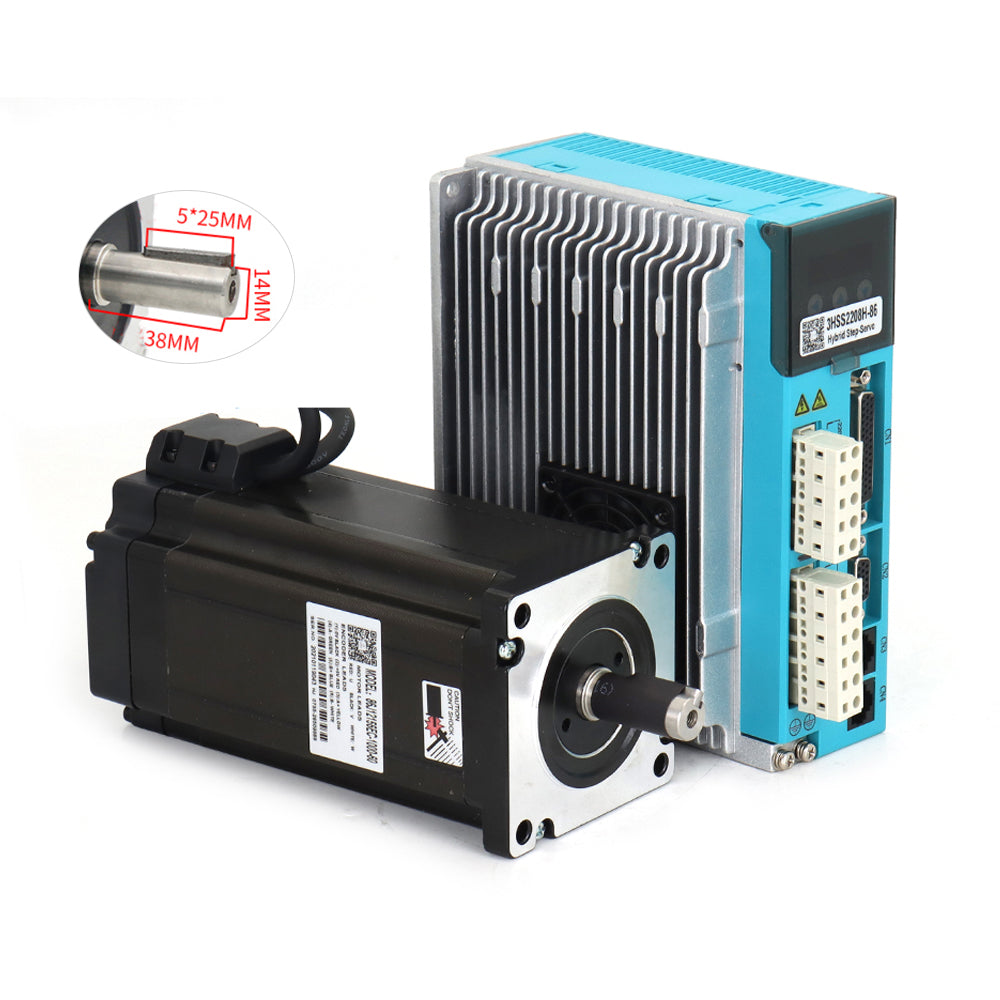

JMC Nema34 3Phase 12N.m Close Loop Stepper Servo Motor Driver 2000RPM

WaveTopSign JMC Nema34 12N.m Closed Loop Stepper Servo Motor Driver Kits 3HSS2208H+86J12156EC

100 left in stock

185.00

DAYS

HRS

MINS

SECS

Shaft Diameter

14mm

PAYMENT ACCEPTED

High quality

In stock

Fast delivery

Details

Features:
1.Without losing step, High accuracy in position
2.100% rated output torque
3. Variable current control technology ,High current efficiency
4.Little vibration, Smooth and reliable moving at low speed
5.Accelerate and decelarate control inside,Great improvement in smoothness of starting or stopping the motor
6.User-defined micro steps
7.Compatible with 1000 and 2500 lines encoder
8.No adjustment in general application
9.Lack of phase, over current,over voltage and over position protection
10.Six digital tube display,easy to set parameters and monitor the motor running state.

Driver Parameters:
Model: 3HSS2208H-86
Type: 32Bit DSP Closed loop Digital display drive
Input Voltage: 110-250VAC
Max. Peak Current: 6A
Signal Input Current: 7-20mA
Impulse Response Frequency: 200KHz
Default Communication Rate: 57.6Kbps
Protective Function: Over voltage, over current, tracking error, over proof
Signal Input Compatible: 4.5-28V signal (Don't need a resistor)
Control Way: 32 bit DSP Vector Closed LoopMotor Parameter:Size: NEMA34 86mm
Step Angle/Phase: 1.2 degree/3PH
Rated Current: 3A
Hold Torque: 12N.m
Shaft Diameter:14mm (5mm key)
Speed: 0-2000RPM
Encoder: 1000line
Class of insulation: B
