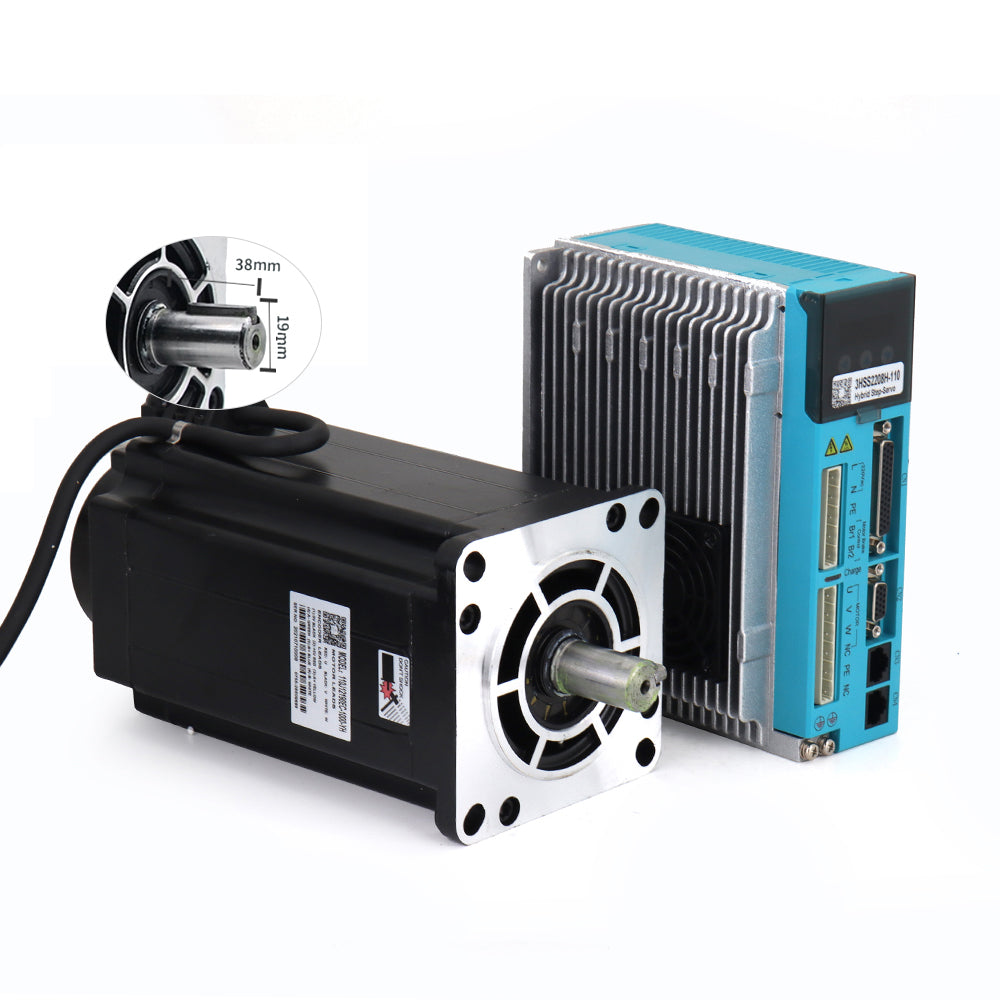

WaveTopSign JMC Nema42 20N.m Hybrid Closed Loop Stepper Servo Motor Driver Kits 110J12190EC+3HSS2208H-110
Features:
1. Without losing step, High accuracy in position
2. 100% rated output torque
3. Variable current control technology ,High current efficiency
4. Little vibration, Smooth and reliable moving at low speed
5. Accelerate and decelarate control inside,Great improvement in smoothness of starting or stopping the motor
6. User-defined micro steps
7. Compatible with 1000 and 2500 lines encoder
8. No adjustment in general application
9. Lack of phase, over current,over voltage and over position protection
10. Six digital tube display,easy to set parameters and monitor the motor running state.

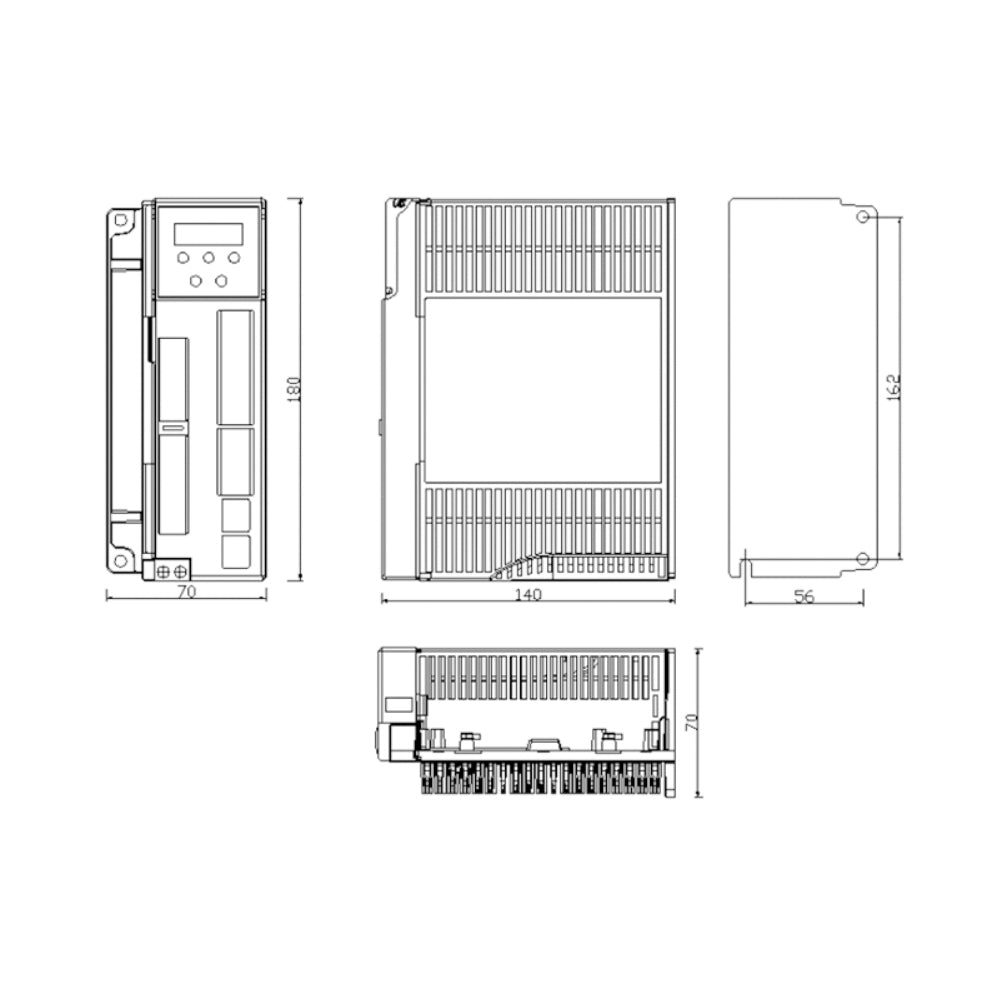

Driver Parameters:
Model: 3HSS2208H-110
Type: 32Bit DSP Closed loop Digital display drive
Input Voltage: 110-250VAC
Max. peak current: 6A
Signal Input Current: 7-20mA
Impulse response frequency: 200KHz
Default Communication Rate: 57.6Kbps
Protective function: Over voltage, over current, tracking error, over proof
Signal input Compatible: 4.5-28V signal (Don't need a resistor)
Control Way: 32 bit DSP Vector Closed Loop

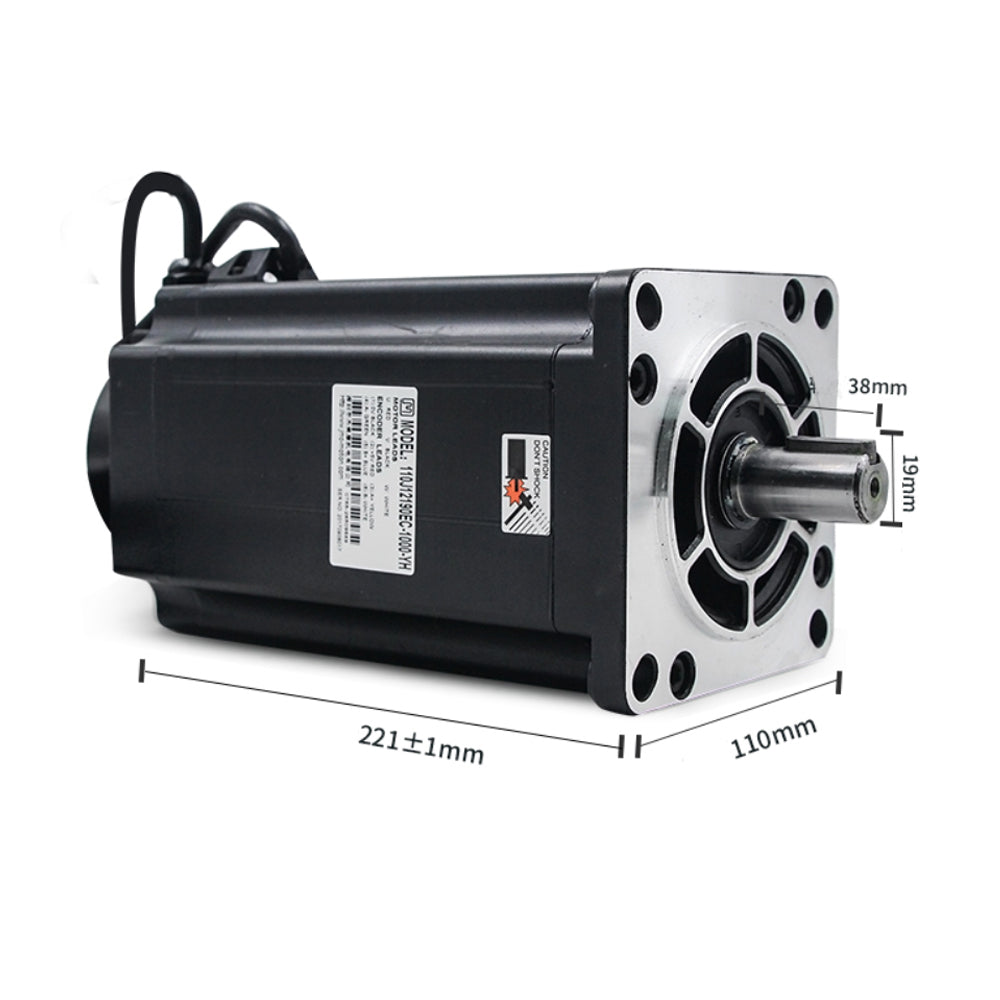

Motor Parameters:
Size: NEMA42 110mm
Step angle/phase: 1.2 degree/3PH
Phase current: 6.8A
Hold torque: 20N.m
Shaft Diameter:19mm (6mm key)
Speed: 0-2000RPM
Encoder: 1000line
Class of insulation: B
Resistance phase: 1.24ohms
Inductance phase: 22mH
