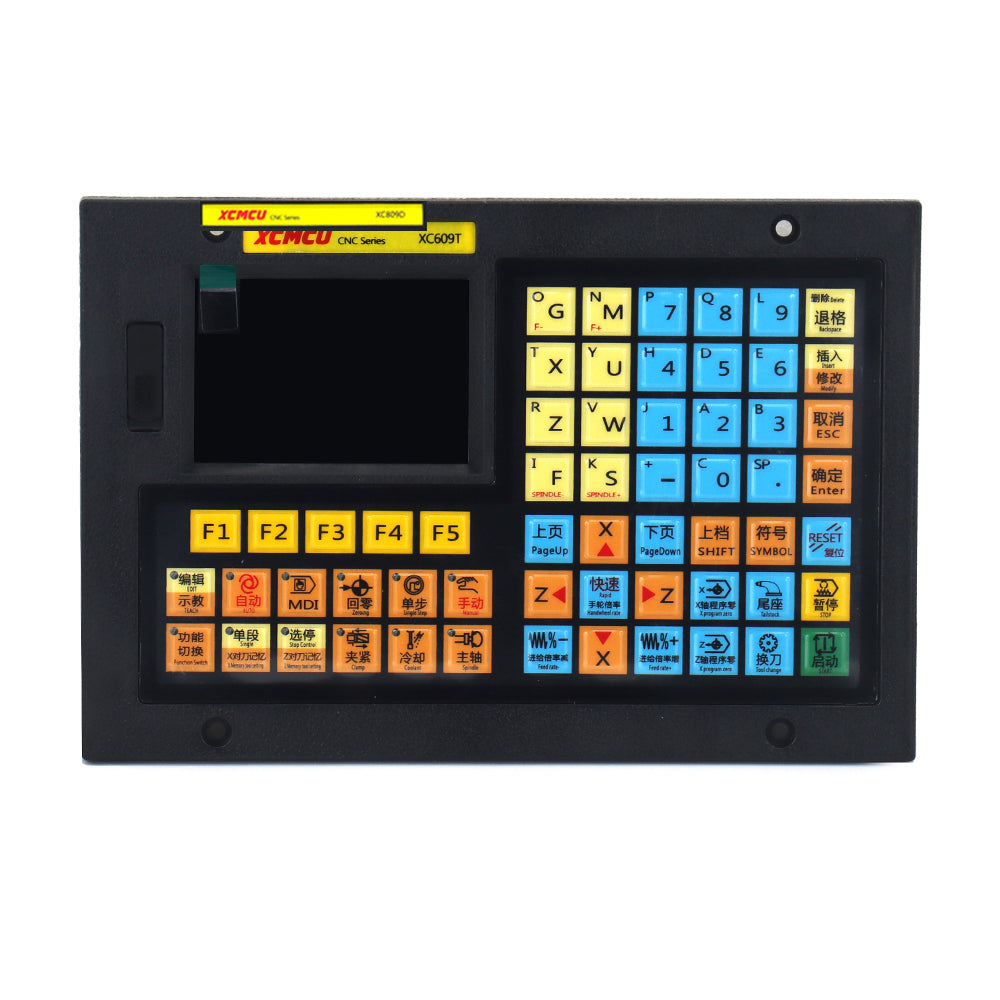

WaveTopSign XC609T 2 Axis CNC USB Offline Control System
XC609T lathe CNC system is a new generation CNC lathe CNC system developed by our company. Adopt international standard G code programming, full-screen editing program, Chinese and English operation interface. The system operation is simple and intuitive. It can complete the machining of the outer circle, end face, slotting, taper, arc, thread, tapping and deep hole drilling through programming. It supports variable frequency spindle and servo spindle control, supports the electric tool holder, input and output customization, input and output port expansion and other functions, with a high-cost performance.
Base Function |
|
Number of control axes |
2 axes (X, Z) |
linkage axis number |
full linkage |
Analog spindle |
2 ways |
Spindle magnification |
50%~120% |
Minimum command unit |
0.001millimeter |
Maximum command value |
±99999999 × minimum command unit |
Rapid feed rate |
12000millimeter/min |
Rapid feed rate override |
F0, 25%, 50%, 100% |
Cutting feed rate |
12000millimeter/min |
Feed rate override |
10% to 150% |
Electronic gear ratio |
1~65535: 1~65535 |
Automatic acceleration & deceleration |
Yes |
Positioning |
G00 (Linear interpolation positioning) |
interpolation |
Straight line (G01),arc (G02/G03/G05) |
Return to reference point |
Automatically return to reference point (G28) |
LCD |
3.5inchTFT LCD screen, resolution 480X320 |
MDI software keys |
5 |
Single step to give |
x1,x10,x100 |
communication interface |
U Disk interface |
External hand wheel interface |
Yes |
I/O Interface |
24/24(Extensible to96/96) |
Pause (seconds) |
Yes |
Quasi-stop status |
Yes |
Quasi-stop |
Yes |
Storage trip check |
Yes |
MDI Operation |
Yes, support multi segment operation. |
Reset |
Yes |
Skip switch |
Yes |
Single-stage operation |
Yes |
Program protection switch |
Yes |
Self-diagnostic function |
Yes |
Emergency stop |
Yes |
Power supply |
DC 24V/1A |
Coordinate system |
G50 setting coordinates |
Automatic coordinate system setting |
Yes |
Decimal point input |
Yes |
Auxiliary Functions |
|
Auxiliary function |
M2 digits, M code customization, manual / MDI / automatic mode to control the spindle forward, reverse, stop; control the coolant start and stop. |
Spindle Function |
|
Spindle function |
Simulated spindle, Double spindle |
Editing Operation |
|
Editing function |
Parameters, diagnostic bit input, program editing, MDI Multi program execution |
storage capacity |
256M |
Number of stored programs |
200 |
program name display |
Chinese, English, numbers and combinations |
Program line lookup |
Yes |
Skip the optional block |
Yes |
Program switch |
Yes |
Display |
|
Display |
Chinese, English, Switchable |
Processing time, the number of parts |
Yes |
Spindle speed, M/S command |
Yes |
