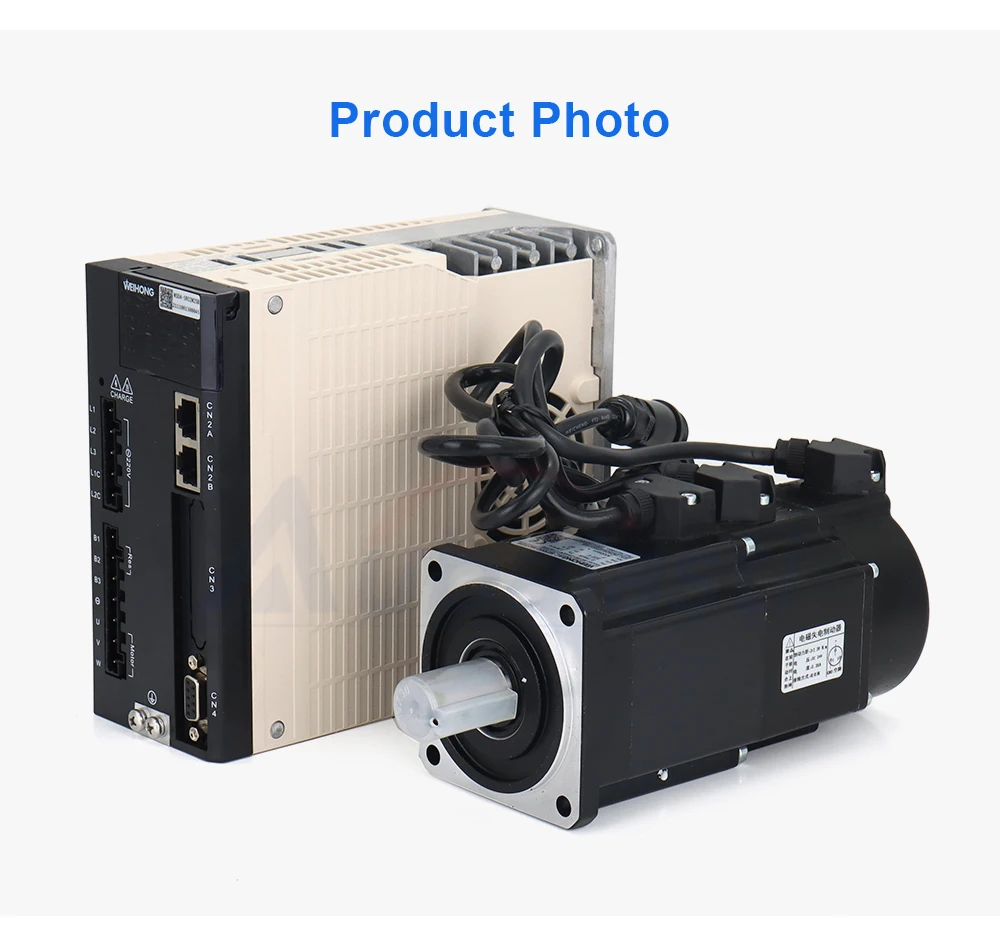

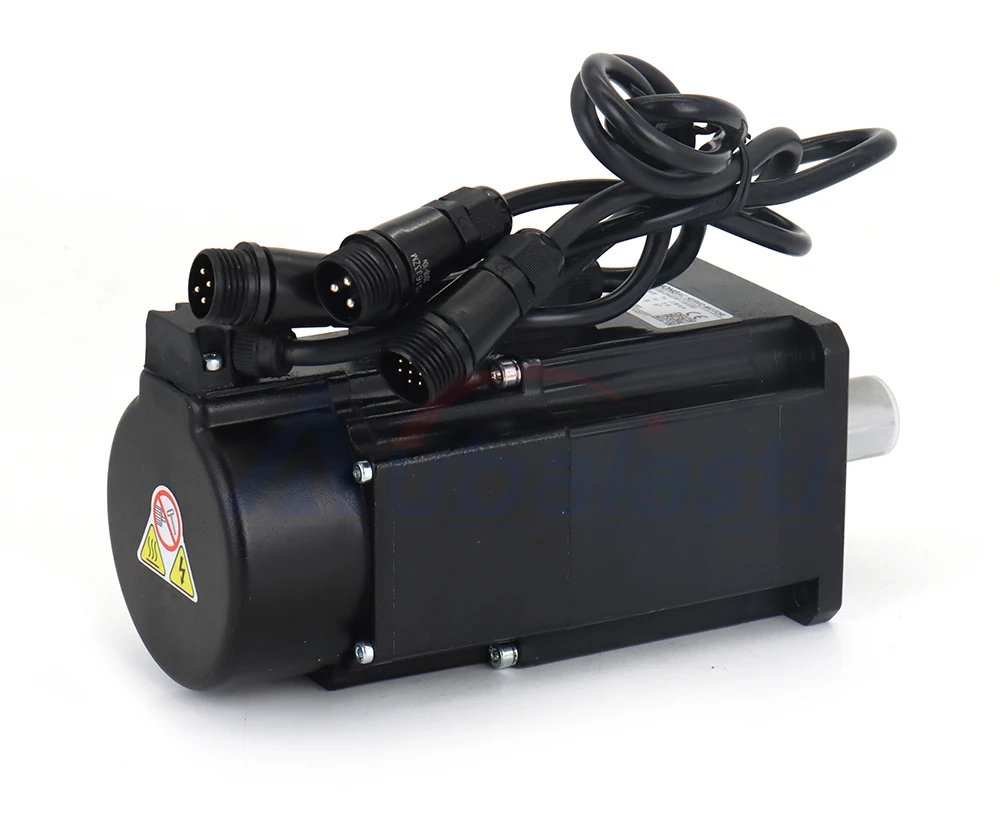

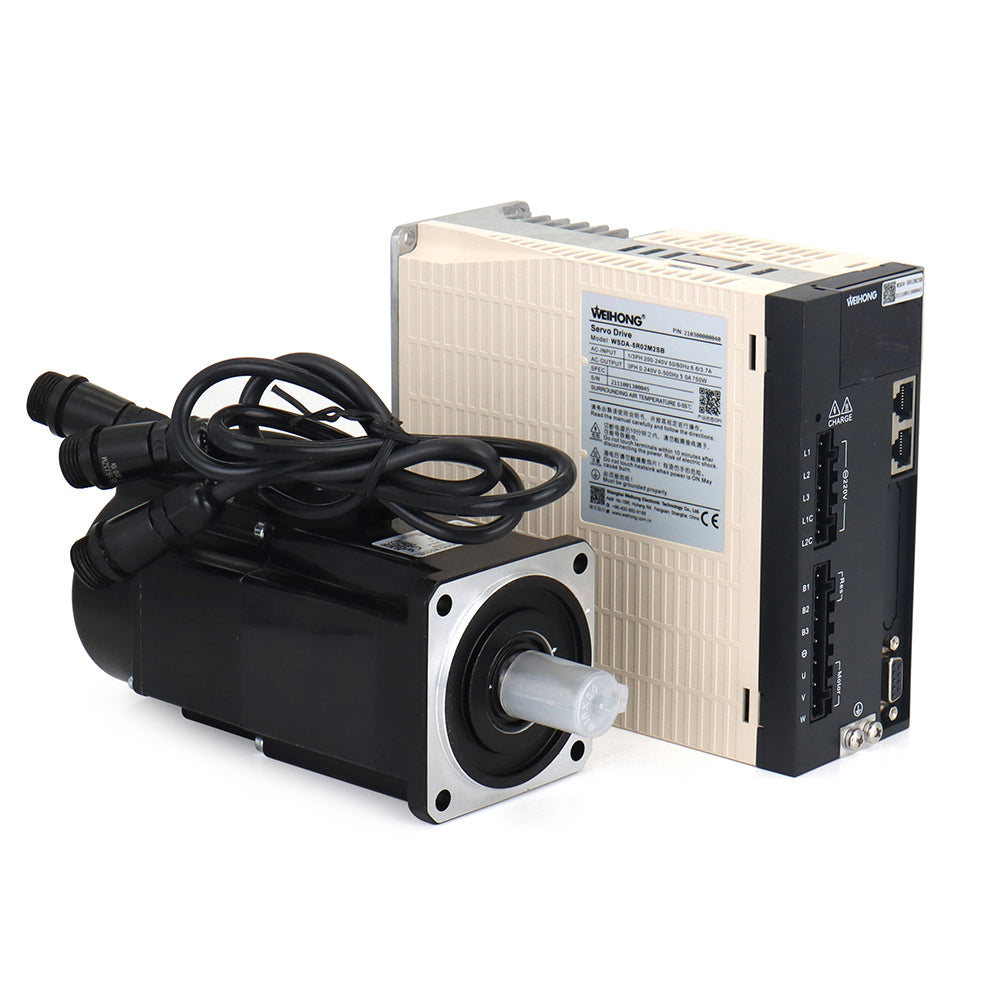

Aubalasti WeiHong WSDA-750W Bus Type Servo Motor Driver Kits 2.39N.m

WaveTopSign WeiHong 750W Bus Type Servo Motor Driver Kits 2.39N.m

100 left in stock

640.00

DAYS

HRS

MINS

SECS

Model

With Brake

PAYMENT ACCEPTED

High quality

In stock

Fast delivery

Details

Product Features：

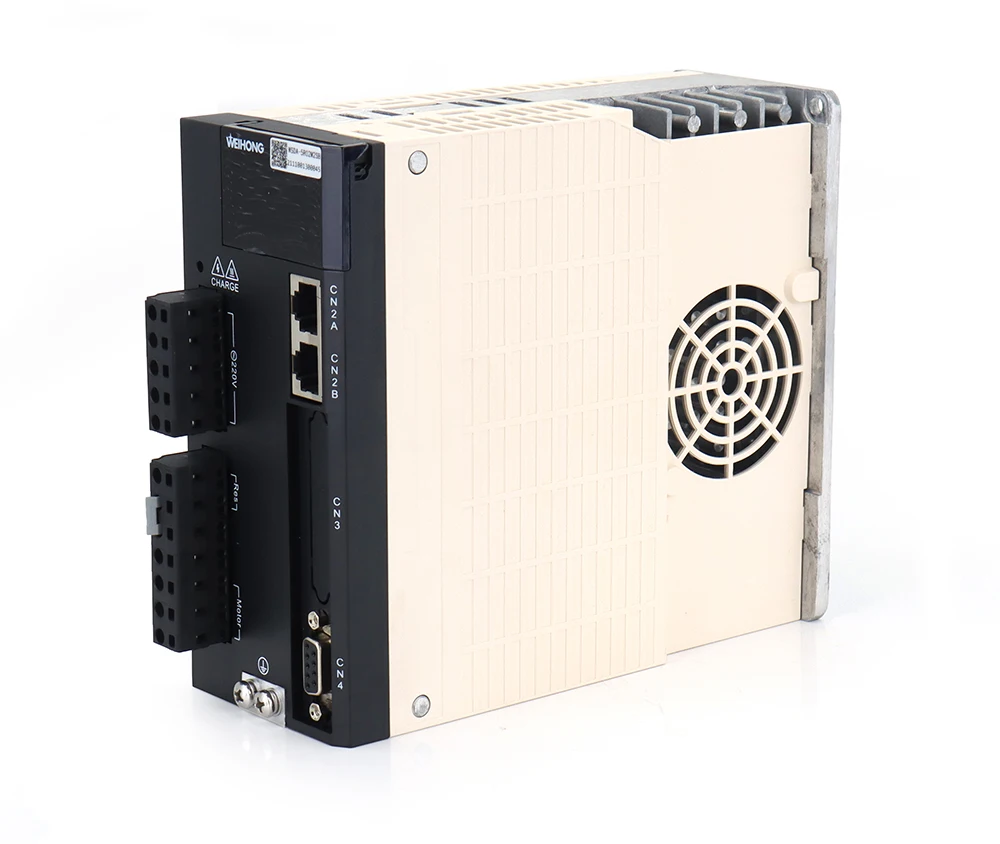

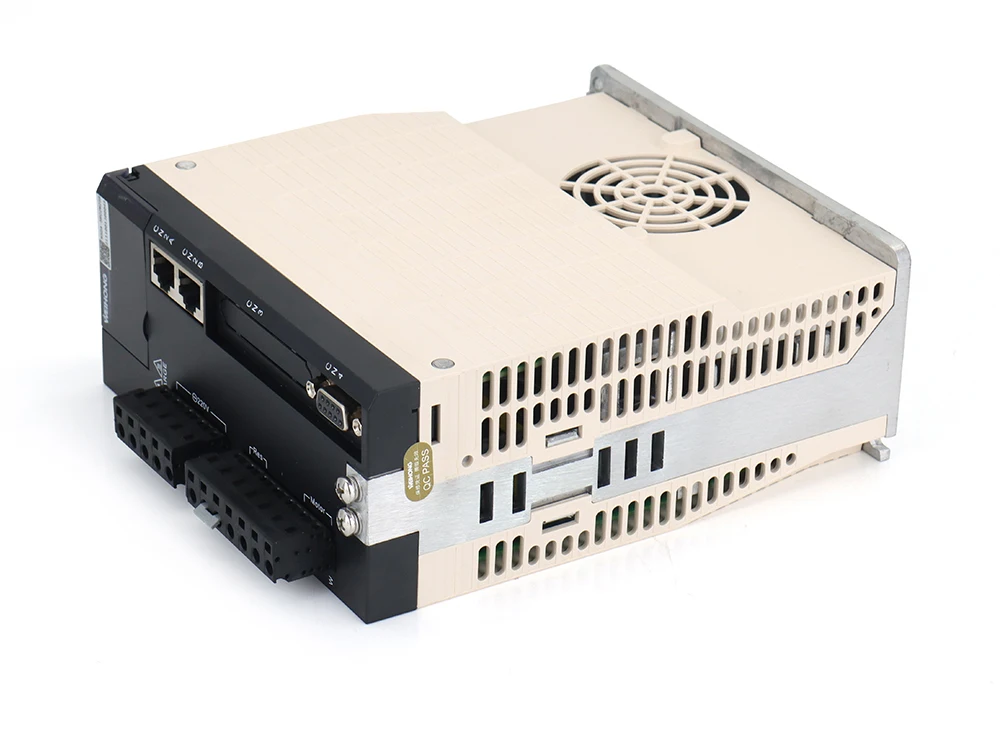

WISE series servo drive is another expansion in motion control industry chain of Weihong Company. It boasts such functions as auto-gain tuning, auto adaptive mechanical resonance suppression, friction torque compensation, external disturbance observer, gain switching and time registration, to name but a few. Thanks to its precise positioning, quick response and ease of use, it has been proven to be ar excellent and reliable solution provider when it is used together with Weihong CNC system. Chain-like product combination can effectively reduce components number and type for machine tool builders and facilitate daily maintenance for machines.

Outstanding positioning precision and low-speed smoothness：
It supports encoder with high resolution, reducing variation of torque, improving positioning precision of motor and enhancing smoothness of low-speed motion. When there is stiffness difference, WISE servo drive can remove oscillation via gain switching function.

Ease of use：
It features auto calculation of inertia ratio, real-time auto-gain tuning and auto suppression to mechanical resonance.

1. Circuit Breaker: Protect the power line by shutting the circuit OFF when over-current is detected.

2. Noise filter: Eliminate external noise from the power line and noise disturbance form the servo drive.

3. Magnetic Contactor: Turn the servo drive on and off. Please install a surge suppressor on the magnetic contactor.

Note: Starting and stopping the servo motor with this magnetic contactor is prohibited.

4. Regenerative Resistor

When an internal regenerative resistor is used, please keep short-circuit wiring between B2-B3 terminals

When an external regenerative resistor is used, please break the short-circuit wiring between B2-B3 terminals, externally connect regenerative resistor to B1-B2 terminals and set parameter Pr016 External regenerative resistor setup to 1.o

Warning:

Please mount the regenerative resistor on incombustible substances such as metal.

Please set over-temperature protection when external regenerative resistor is used

Over-temperature protection fuse and thermostat is built in the regenerative resistor. Once fuse action occurs, it cannot restore to the previous state

5. Ground

6. Motor main circuit cable

7. Moto

8. Encoder cable

9. Fieldbus controller / fieldbus control system / fieldbus type servo drive / termina resistor

10. PC: supporting iMotion software
