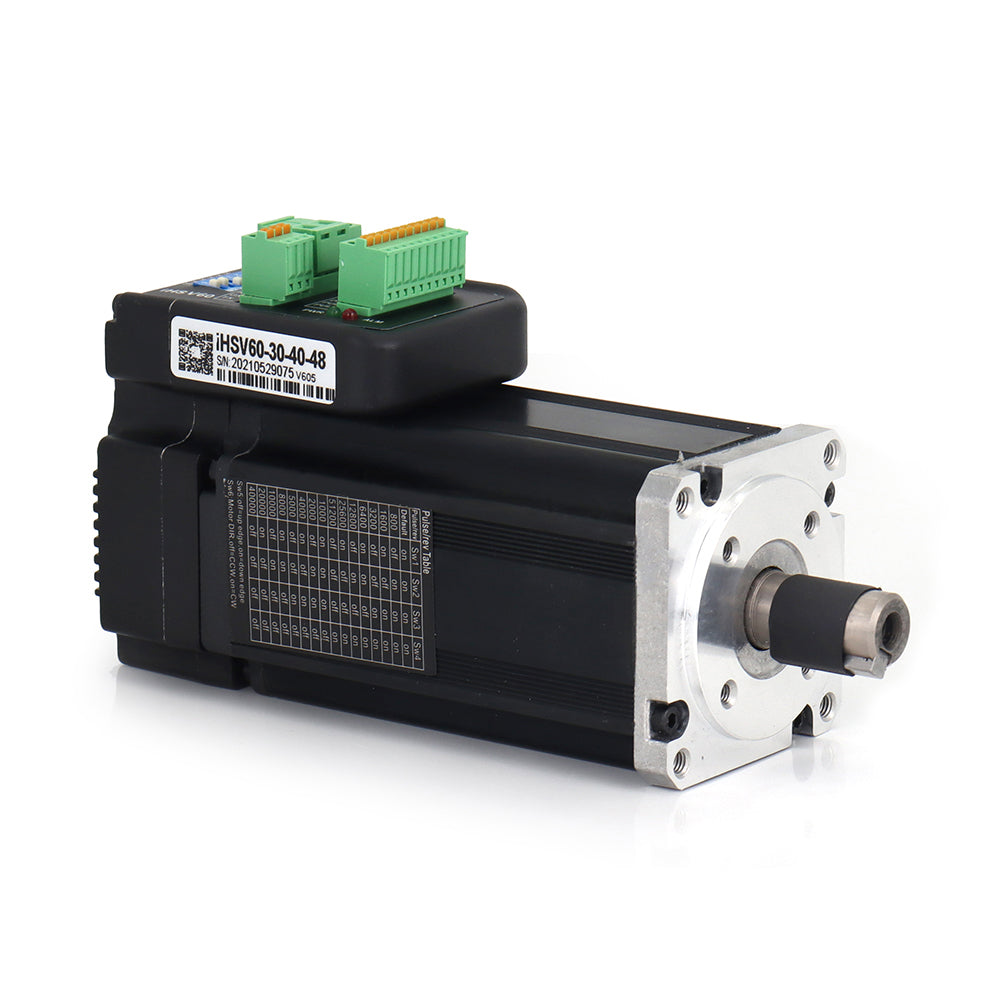

WaveTopSign JMC 400W Integrated AC Servo Motor with Driver Set 48VDC 3000rpm 1.27N.m iHSV60-30-40-48
Base: 60mm
Voltage: 48VDC
Output shaft length: 14x30MM
Rated torque: 1.27N.m
Rated speed: 3000rpm
Rated current: 11.2A
Rated power: 400W
Motor length: 140mm
Encoder line: 1000 lines
Pulse frequency: le250K
Default communication rate: 9.6Kbps
Input voltage: 20-50VDC (48V typical value)
Continuous output current: 6.0A
Overcurrent action value: peak 30A plusmn 10%
Thermal action value: 80 deg C
Overvoltage voltage action value: 65V
Undervoltage voltage action value: 18V
Working temperature: 0~70degC
Storage temperature: -20 deg C ~ +80 deg C
Humidity: 40~90%
Cooling method: natural cooling or strong cooling air
Occasion: Try to avoid dust, oil mist and corrosive gases
Introduction:
iHSV57-XX Integrated AC Servo Driving Motor is perfectly integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV57-XX is a series of stable performance, high cost-effective motion control products.
Features:
1. Multi Pulse Input Modes Pulse+Direction
2. Opto-isolator Servo Reset Input Port ERC
3. Current Loop Bandwidth:（-3dB）2KHz(Typical)
4. Speed Loop Bandwidth: 500Hz(Typical)
5. Position Loop Bandwidth: 200Hz(Typical)
6. Motor Quadrature Encoder Input Interface: Differential Input(26LS32)
7. Download parameters via RS232C from PC or Text Display.
8. Users can definite subdivisions via external Dial-up switches or software.
9. Overcurrent, I2T, Over-voltage, Undervoltage, Overheat, Overspeed, Overerror Protections.
10. Green light indicates running, red light indicates protection or offline.
|
Input Voltage |
24-50VDC(48V typical value ) |
|
|
Continuous Output Current |
11.2A |
|
|
Holder Torque |
1.27N.m |
|
|
Default Rated |
9.6Kbps（Required external conversion interface） |
|
|
Protect |
▸Peak value of over current action value 30A±10% ▸Overload I2t current action value of 300% 5S ▸Overheating action value of 80 ▸Overvoltage action value 65V ▸Action value of under voltage voltage 18V |
|
|
Use Environment |
Occasion |
As far as possible to avoid dust, oil mist and corrosive gases |
|
Working Temperature |
0~+70℃ |
|
|
Storage Temperature |
-20℃+80℃ |
|
|
Humidity |
40-90%RH |
|
|
Cooling Mode |
Natural cooling or forced air cooling |
|
