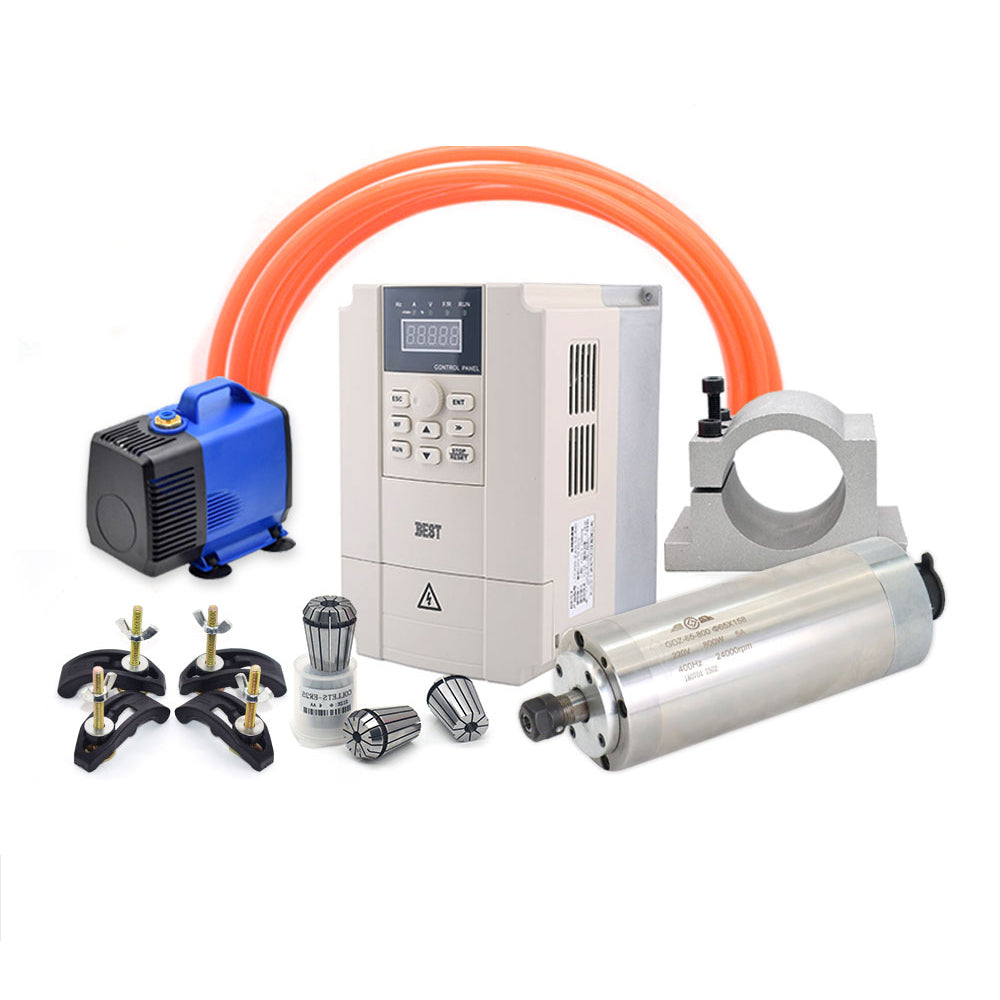

WaveTopSign 800W CNC Water Cooled Spindle Motor Kits GDZ-65-800
Engrave for wood, bamboo, normal PCB, PVC, PMMA, plastic, duotone board (ABS) and etc nonmetal, also can engrave on gold, silver, copper, aluminium, Pb etc soft metal surface working.
(Please note that this product is a woodworking spindle, which can only be used for woodworking and aluminum processing, not for steel processing. If you need steel processing and need to use a metal cutting spindle, you can contact us)
Motor Parameters:
Size: 65x158mm
Power: 800W
Voltage: AC220V
Frequency: 0-400Hz
Speed: 0-24000rpm
Current: 5A
Collet Chuck: ER11
Cooling Type: Water Cooling
Runout off: Less than 0.01mm
Bearing: 2pcs bearings(2×7002C P4 DT )
Lubrication: Grease Lubrication
Power: 0.8kw
Input Voltage(Phase): 220v(1 Phase)
Output Voltage(Phase): 220v(3 Phase)
Input Frequency: 50/60Hz
Input Current: 220v(15A)
Output Current: 220v(22A)
Output Frequency: 400Hz
Control Method: V/F control; Open-loop flux vector control
Features:
1. Control Mode is SPWM,it is very easy to use and convenient
2. Protection functions are very strong,
3. Fin over-heat protection,
4. Overload protection,
5. Fuse protection,
6. Restart after instant stop,stall protection.
7. Powful function
1. Adopt full sandblasting appearance treatment
2. Slot design, easy to lock the spindle
3. The cast aluminum has higher precision and is more durable
4. Scientific casting, stronger earthquake resistance
Parameters:
Diameter: 65mm
Material: Cast Aluminium
1. Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
2. Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth.
3. Cast aluminium fixture is much heavier than aluminium profile fixture. Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.
Features:
Type: ER11 High accuracy collet
Material: Steel
Quantity: 9Pcs(ER11)
Precision: ≤ 0.008mm
Hardened & Precision ground
Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.
