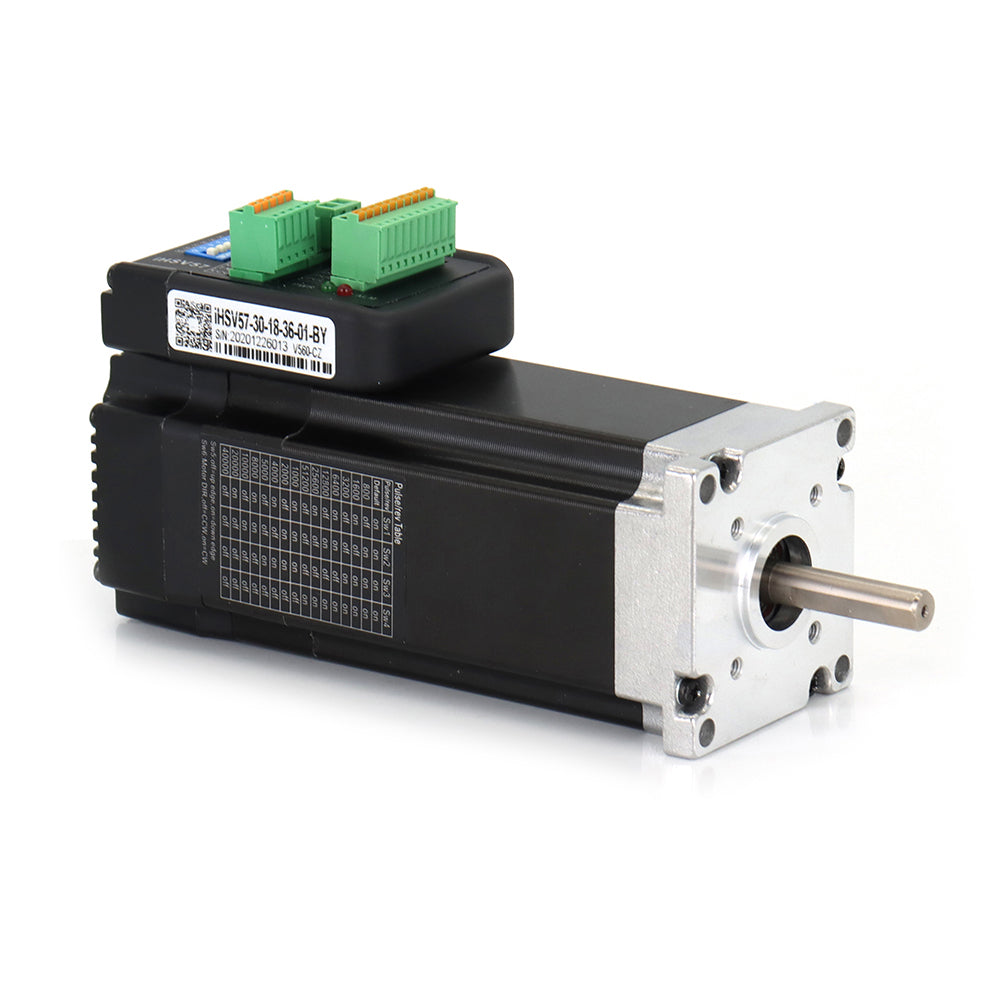

Aubalasti 180W Nema 23 AC Integrated Servo Motor with Driver 36VDC 0.

WaveTopSign Nema23 180W AC Integrated Servo Motor with Driver 36VDC 0.6N.m 3000RPM

100 left in stock

82.00

DAYS

HRS

MINS

SECS

Model

Without Brake

With Brake

PAYMENT ACCEPTED

High quality

In stock

Fast delivery

Details

Specifications:

Nema 23 Integrated AC servo motor 180W

Power: 180W

Rated speed: 3000RPM +/- 10%

Rated torque: 0.6N.m

Rated current: 7.5+/-1A

Max torque: 1.5N.m

Torque coefficient: 0.082N.m/A

Phase resistance:0.53ohm

Phase inductance: 0.58mH

Shaft Diameter: 8mm

Shaft Length: 33mm

Nema:23

Introduction:

iHSV57-XX Integrated AC Servo Driving Motor is perfectly integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV57-XX is a series of stable performance, high cost-effective motion control products.

Features:

1. Multi Pulse Input Modes Pulse+Direction

2. Opto-isolator Servo Reset Input Port ERC

3. Current Loop Bandwidth:（-3dB）2KHz(Typical)

4. Speed Loop Bandwidth: 500Hz(Typical)

5. Position Loop Bandwidth: 200Hz(Typical)

6. Motor Quadrature Encoder Input Interface: Differential Input(26LS32)

7. Download parameters via RS232C from PC or Text Display.

8. Users can definite subdivisions via external Dial-up switches or software.

9. Overcurrent, I2T, Over-voltage, Undervoltage, Overheat, Overspeed, Overerror Protections.

10. Green light indicates running, red light indicates protection or offline.
